Description
ModelGoLift 400/700 Patient Lift Kit features:
- Wired Hand Control

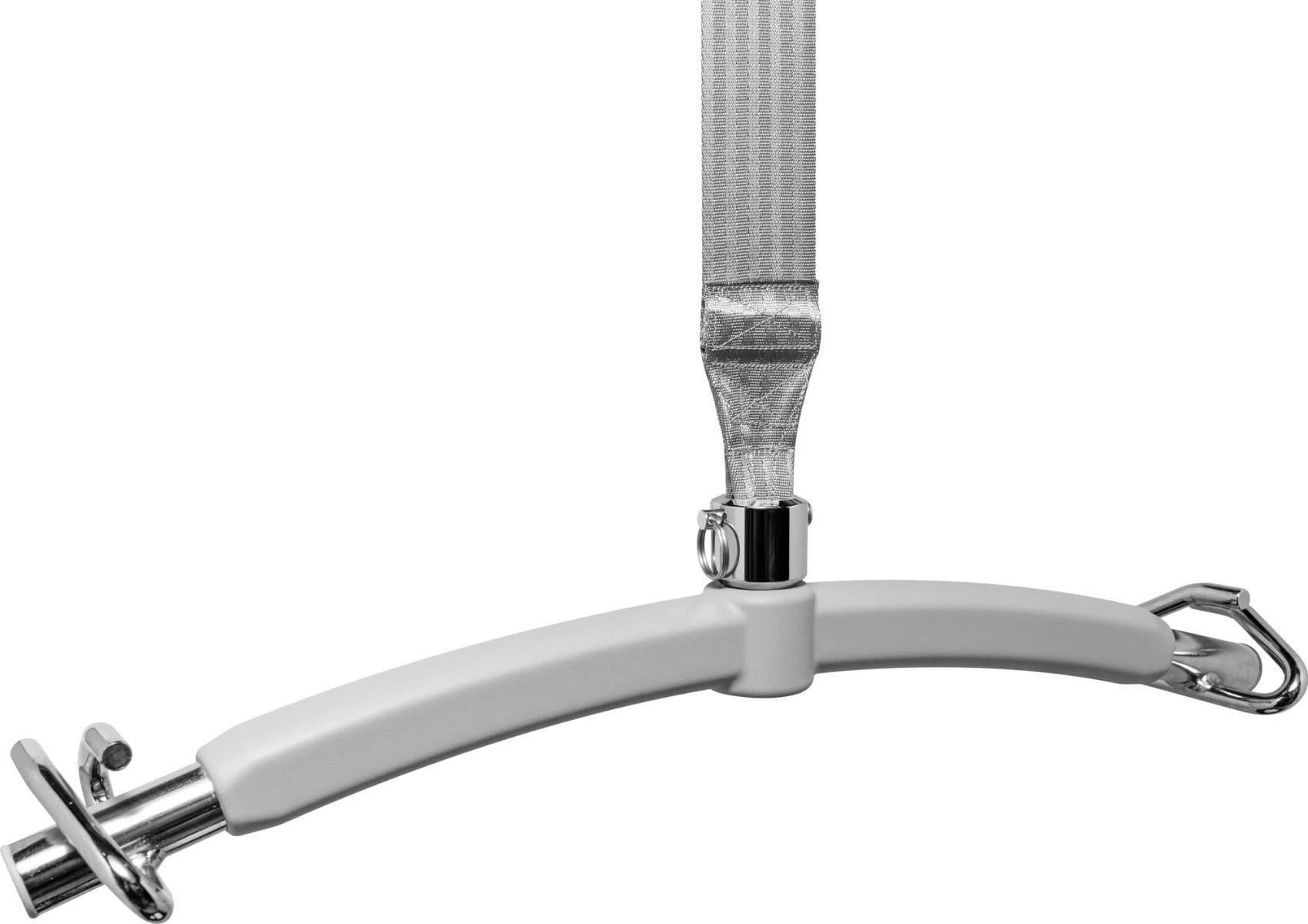

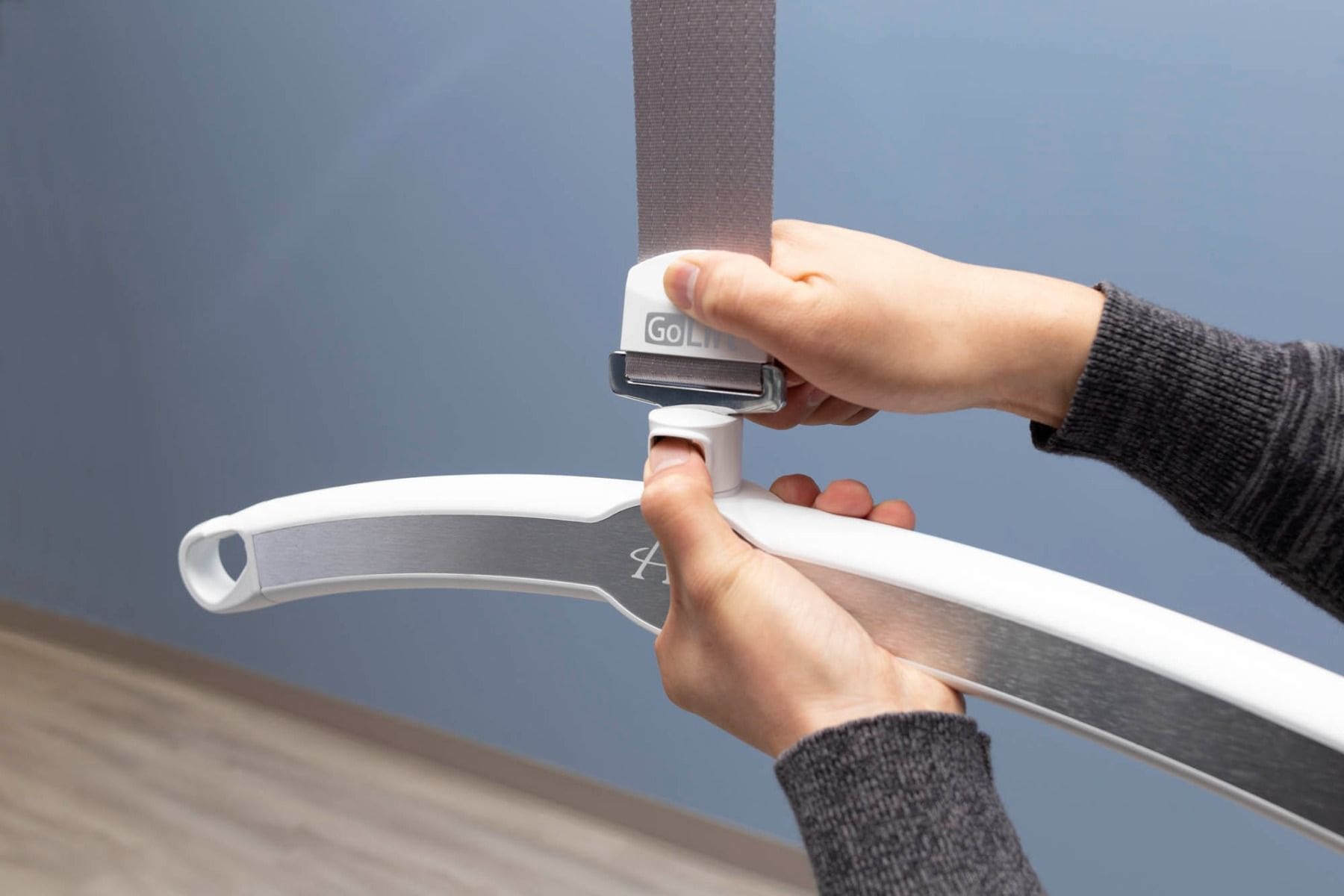

- Quick Connect Carry Bar
- Quick Connect Hand Control
- Light Weight and Portable
- LED Indicators
- Infection Control
- Durable and Strong
- Easy to Service
Safety Features:
- Emergency Stop
- Emergency Lowering Device
- Upper Limit Detection
- Lower Limit Detection
- Slack Tape Sensor
- Free Fall Brake (over speed governor)
- Low Battery and Dead Battery Alarms
- Soft Start and Stop
- Overload Protection
- Emergency Manual Lowering
Specifications
| Safe Working Load | GoLift 400: 400 lbs (181 kg) GoLift 700: 700 lbs (318 kg) |
| Unit Weight | 10 lbs (4.5 kg) |
| Dimensions | Length: 7 ¾” (197 mm) Width: 7 ¾” (197 mm) Height: 4 ¼” (108 mm) Strap Length: 84″ (2134 mm) |
| Lift Case | Flame retardant ABS |
| Approvals | Can/CSA-C22.2 No 60601-1:08 UL 60601-1:08 Tested to: ISO 10535-06, CE |
| Capacitive Touch Hand Control | Protection Class: IPX4 |
| Service Life | 10 years or 22,500 cycles |
| Maximum Sound Level | <55 dB |
| Maximum Lifting Speed | No load: 2 inches/second 150 lbs (68 kg): 1.3 inches/second 400 lbs (181 kg): 1 inch/second 700 lbs (318 kg): 1 inch/second |
| Batteries | High Capacity, Nickel Metal Hydride (Ni-Mh) Standard: 2x 14.4V (3.3Ah) Optional: 2x 14.4V (5Ah) |
| Battery Charger | Input: 100-240V AC Output: 36V DC 1.0A 40W |
| Number of Lifts Per Charge (Duty: 10/90) | 25% of strap at midrange, calculated using 5Ah packs 375 with 185 lbs / 84 kg 170 with 400 lbs / 181 kg 102 with 700 lbs / 318 kg Charging time: 2 – 4 hours |
