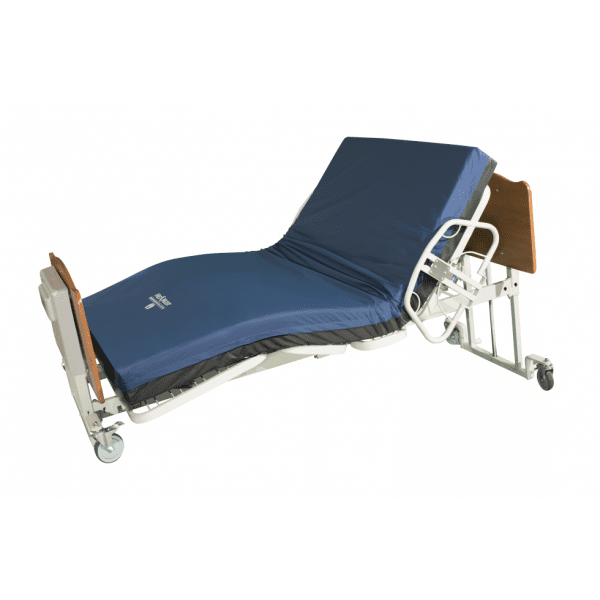

Blake, EX 8000 Bed Frame

Description

EX 8000 Bed Frame features:

• Full clear span underneath for unobstructed access with lifts and assisting devices
• Each pivot has hardened steel to increase the life of the bed
• Soft non-marking bumpers to protect from wall damage
• Box tubular steel is light weight and maximizes strength
• The grid deck allows for ventilation under mattress
• Easy storage and transport, this bed can be disassembled in minutes and transported in tight areas

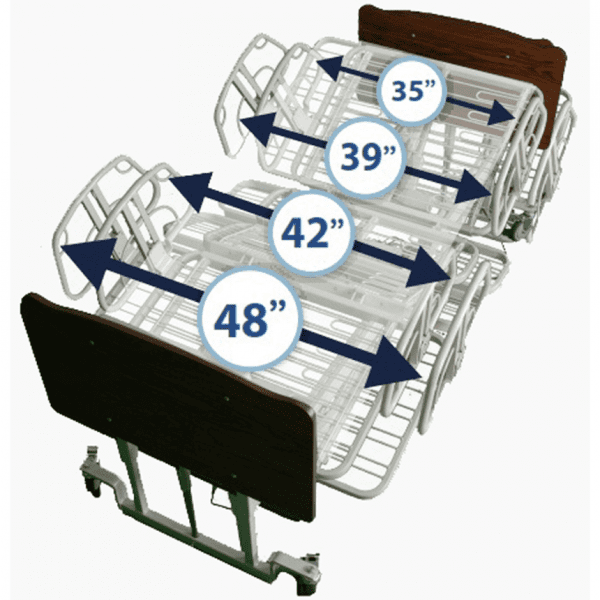

• It has an expandable width up to 48” without the use of tools for more comfort and flexibility
• Trendelenburg/ reverse Trendelenburg and cardiac chair can be quickly achieved with the 5-function handset

Specifications:

• Deck Height Low- 9.5” (optional 14.5”)
• Deck Height High- 25.5” (optional 30.5”)
• Sleeping Surface- 35”, 39”, 42”, 48” W x 80” L
• Maximum Safe working Capacity- 800 lbs
• Product Weight
  • Foot Section lift- 42 lbs
  • Head Section Lift – 42 lbs
  • Head Section Sleep Surface- 94 lbs
  • Foot Section Sleep Surface- 91 lbs
• Maximum Back Angle- 63 º
• Maximum Knee Angle- 19 º
• Mobility Height- Any Height
• Bed Frame Weight: Foot Section lift- 42 lbs Head Section Lift – 42 lbs Head Section Sleep Surface- 94 lbs Foot Section Sleep Surface- 91 lbs

Electrical Specifications:

• Main Voltage Input- 120 V AC
• Max Current Input- 2.70 A
• Main Frequency Input- 60 Hz
• Controller Output Voltage- 24 V
