Future Mobility, Orion II 500 Bariatric Tilt-in-Space Wheelchair, 500 lb Capacity

Description

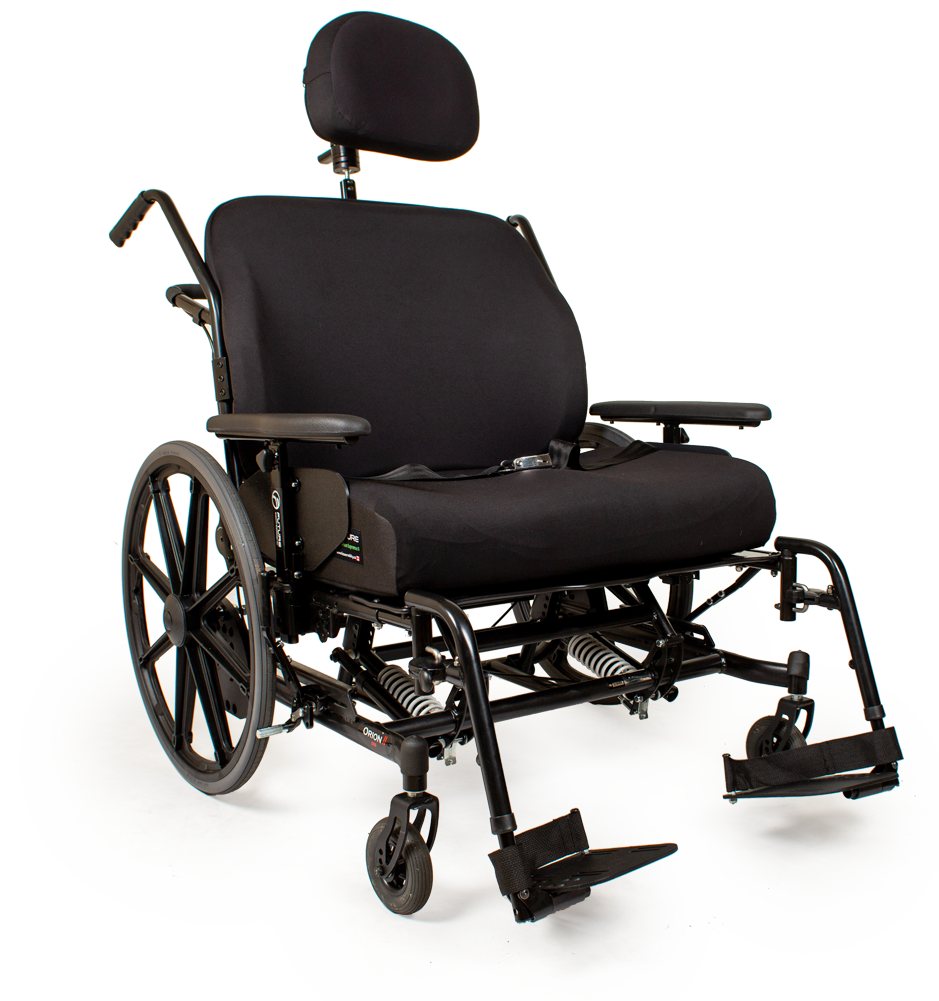

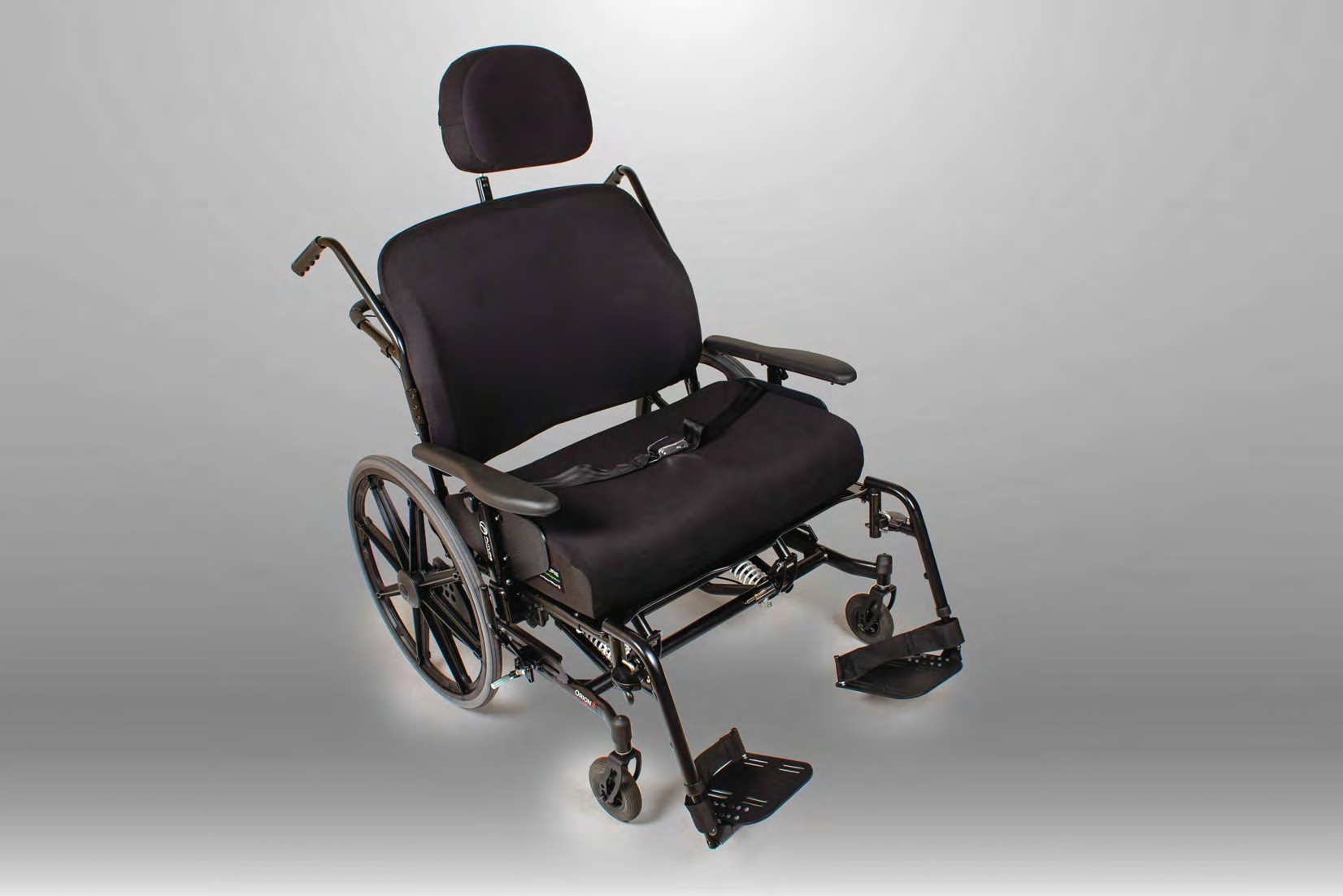

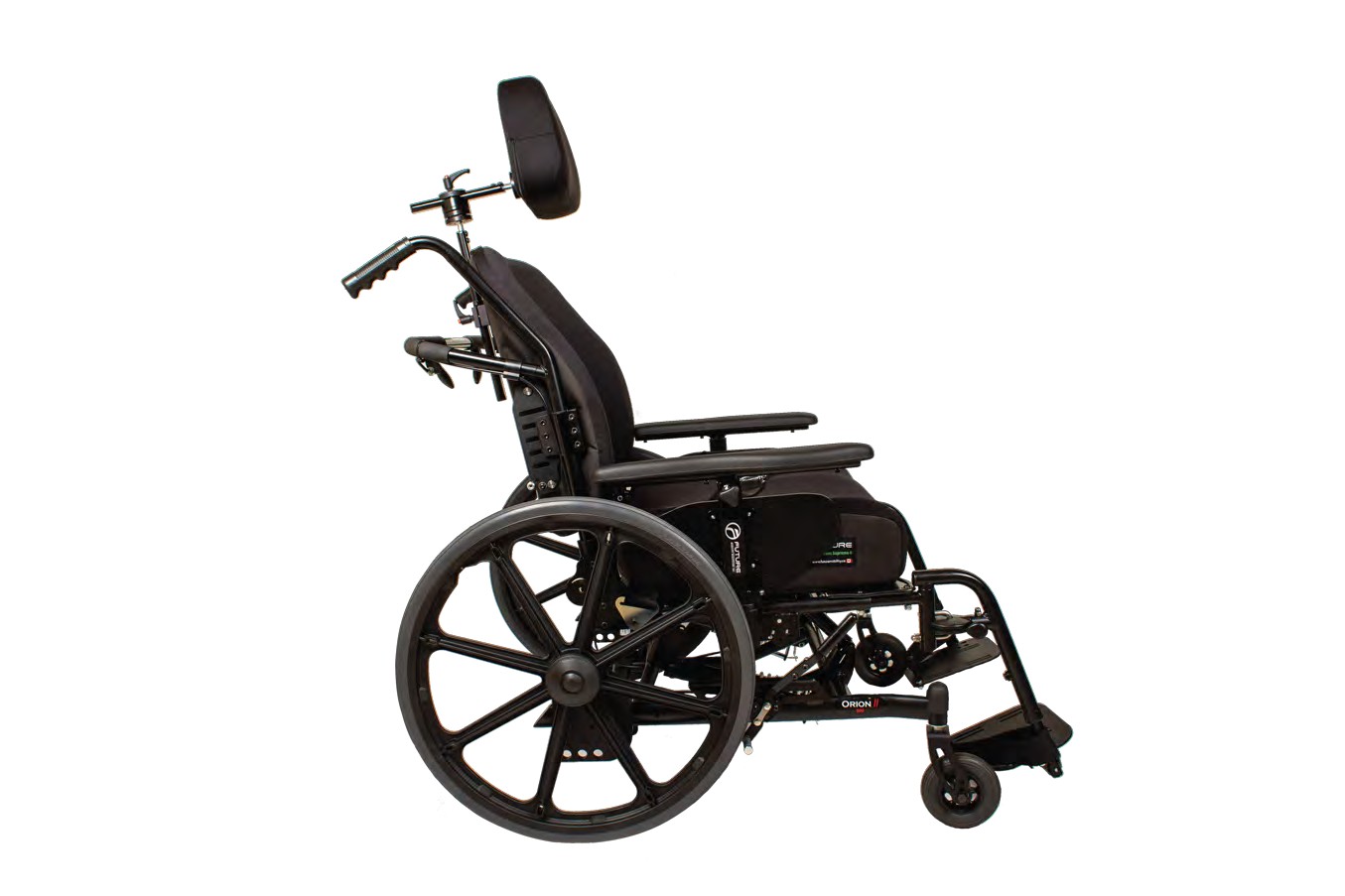

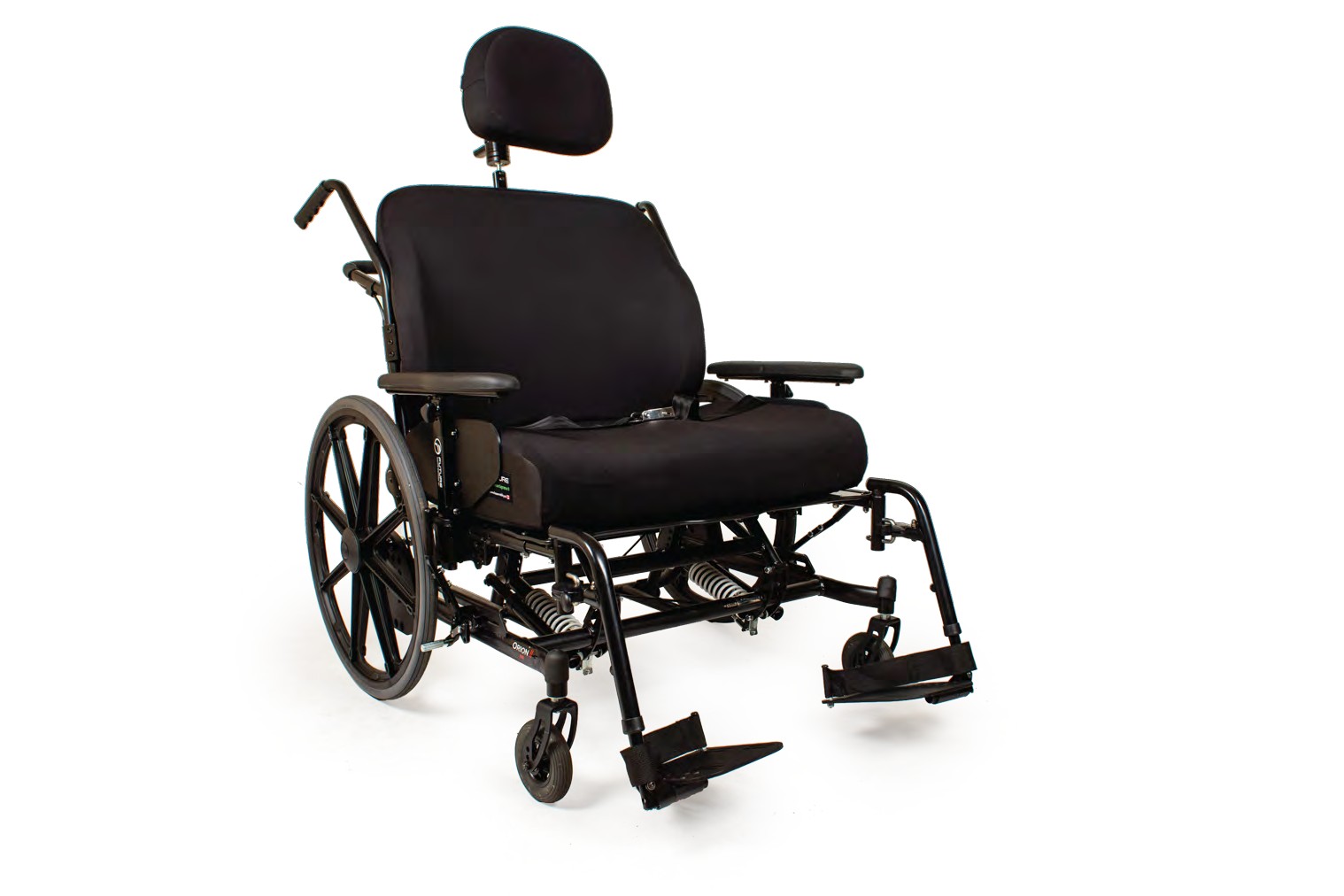

Future Mobility Orion II 500 heavy-duty tilt-in-space wheelchair

The Orion II 500 is a heavy-duty manual tilt wheelchair designed for people who weigh 250–500 lb. Tilting the whole seat back – while keeping hip and knee angles the same – lets the user shift their weight for comfort and pressure relief, and makes repositioning easier and safer for the caregiver.

It’s one of the most widely used heavy-duty tilt chairs in the bariatric market, built on a steel frame and sized from 24″ to 32″ wide so it can be fitted to the person who uses it. Designed and made in Canada by Future Mobility.

Key features

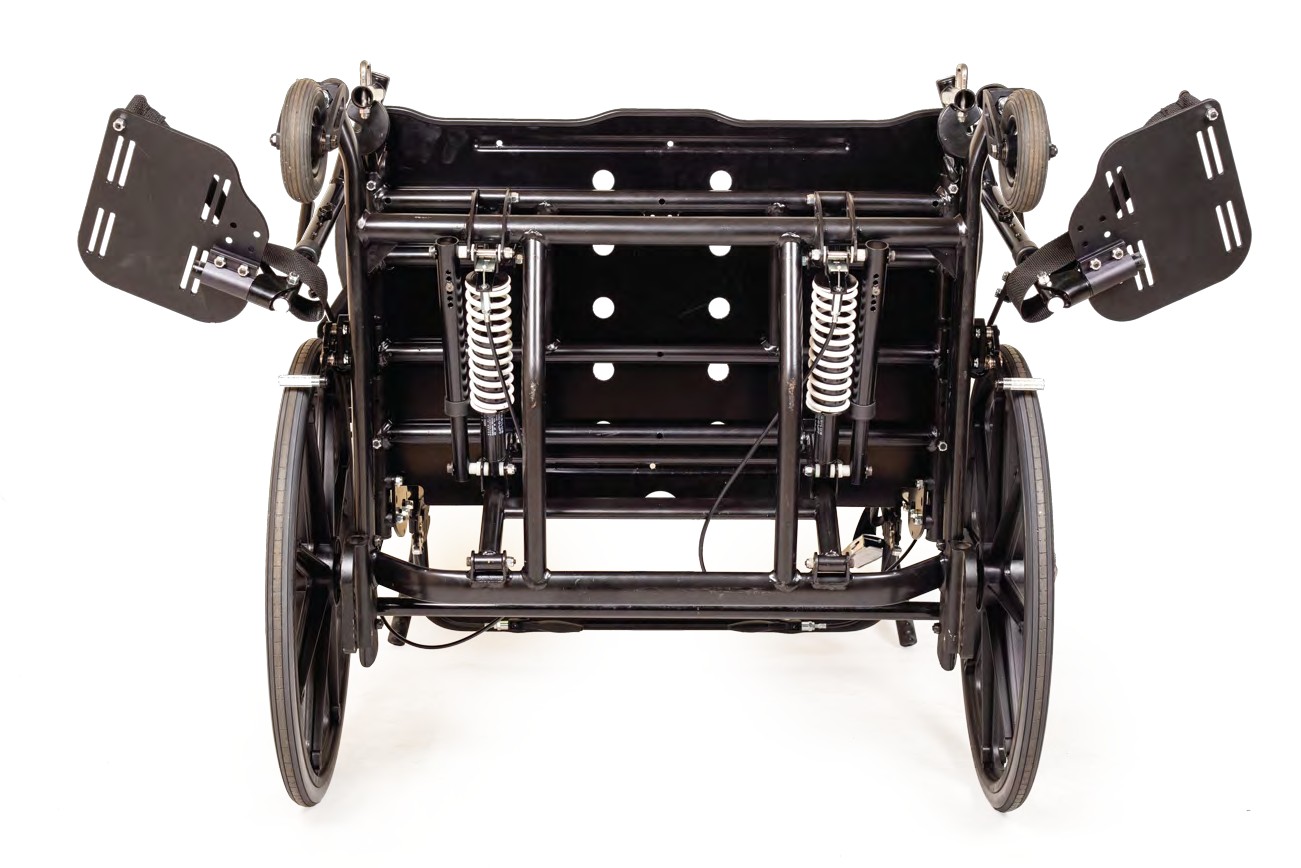

• Dual gas cylinders – a smoother, controlled tilt for both the user and the caregiver, rated to 500 lb
• Attendant trigger tilt – the caregiver tilts the chair easily from the push handle

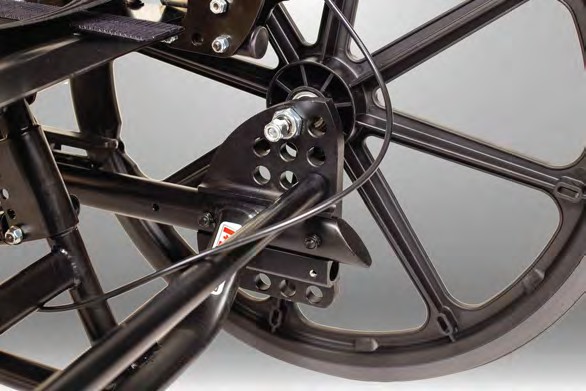

• Adjustable axle plate – set the seat-to-floor height and the chair’s center of gravity

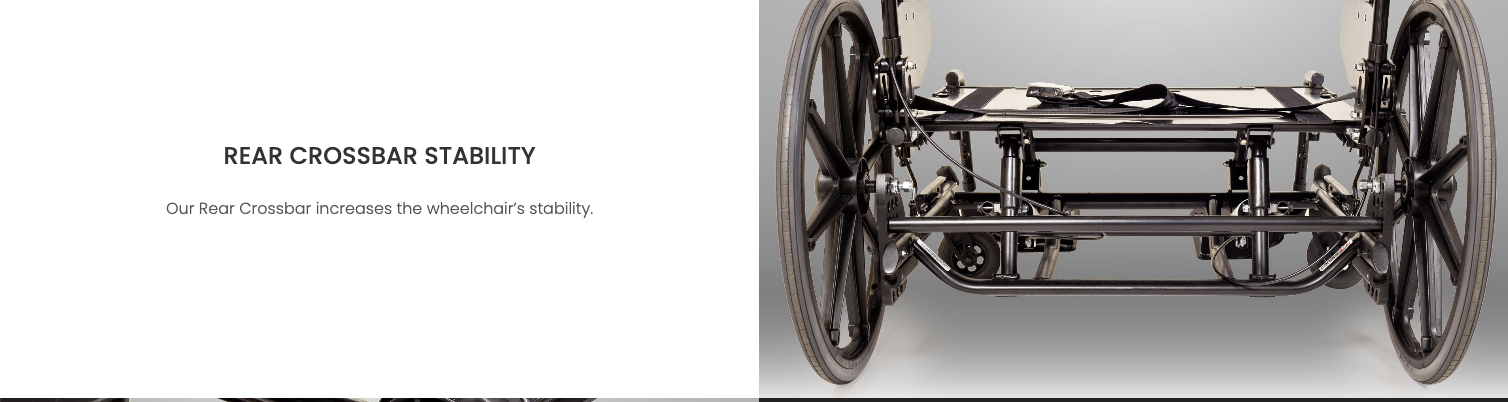

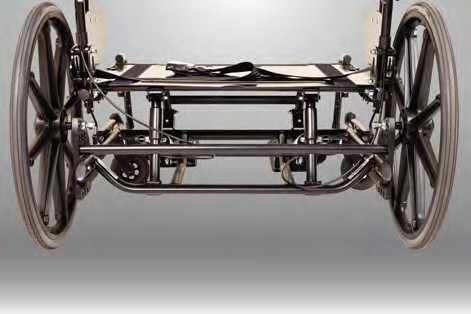

• Rear crossbar – added frame stability

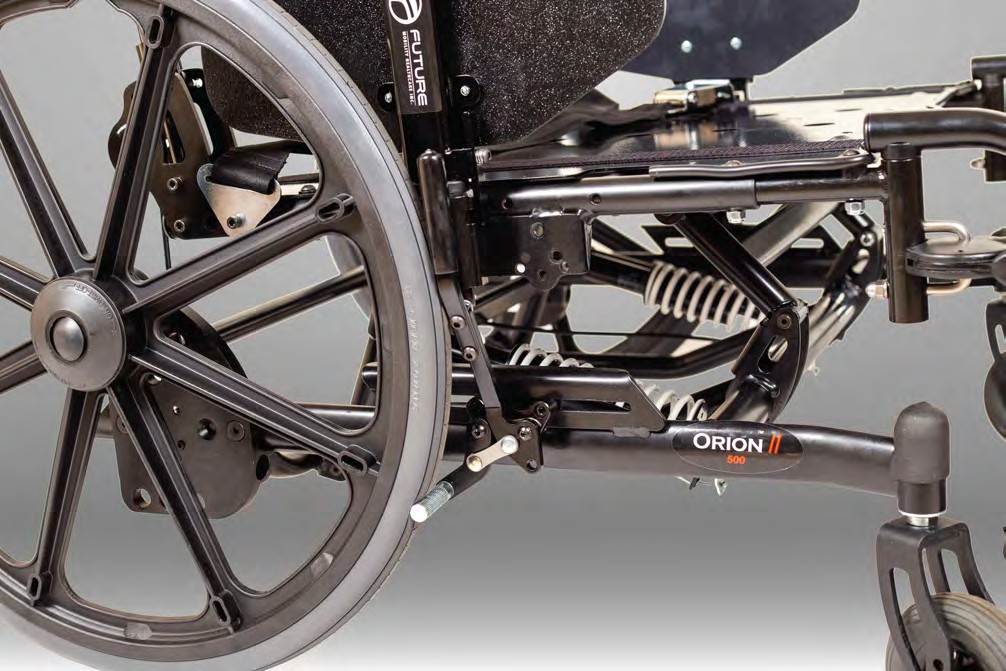

• Push or pull wheel locks – with a brake extension built into the handle

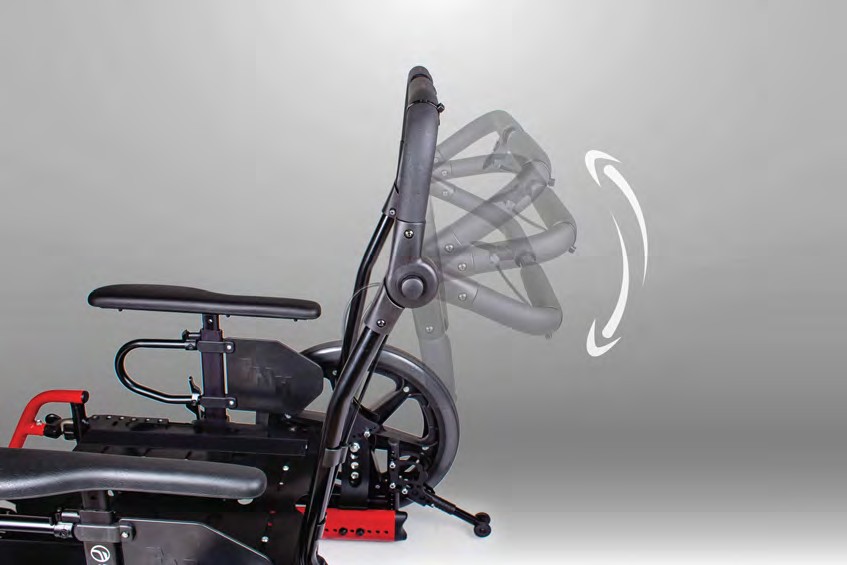

• Adjustable back angle – −7°, 0°, 7°, 14° or 21°
• Low or tall stroller-handle push bar
• Front rigging choices – swing-away footrests or elevating legrests
• Arm styles – full-length heavy-duty arms in gel or vinyl, fixed or height-adjustable
• 8 frame colors

Specifications

• Weight capacity: 500 lb (227 kg)
• Designed for users: 250 – 500 lb
• Product weight: 70 lb (without cushion, back, armrests or front riggings)
• Frame: steel
• Seat width: 24″ – 32″
• Seat depth: 15″ – 24″
• Seat-to-floor height: 15½″ – 18″
• Overall width: seat width + 9½″
• Rear wheels: 12″, 20″, 22″ or 24″ composite with urethane tires
• Front casters: 5″, 6″, 7″ or 8″ urethane
• Back angle: −7°, 0°, 7°, 14°, 21°
• Back style: low or tall stroller-handle push bar
• Front rigging: pin-style swing-away, dual swing-away, elevating legrests or dual elevating legrests
• Arm style: full-length 2-point fixed-height heavy-duty (gel or vinyl); full-length adjustable-height pin-release T-style (gel or vinyl); full-length fixed-height heavy-duty flip-back (vinyl)

Manufacturer warranty

• Frame: lifetime
• Materials and workmanship: 1 year
• Power tilt control box, battery charger, actuator and hand control: 1 year
• Power tilt batteries: 6 months
• Upholstery: 90 days

Warranty applies to normal use by the original purchaser, from the date of purchase. Defective parts are repaired or replaced at Future Mobility’s discretion.

Fitted to the user

A tilt wheelchair works best when it’s sized and set up for the person using it. Our team can help you choose the right seat width, depth, height and options, and work with your therapist if you have one. Call 1-888-959-0072 or contact us before ordering.
