Description
GH1 Ceiling Lift features:

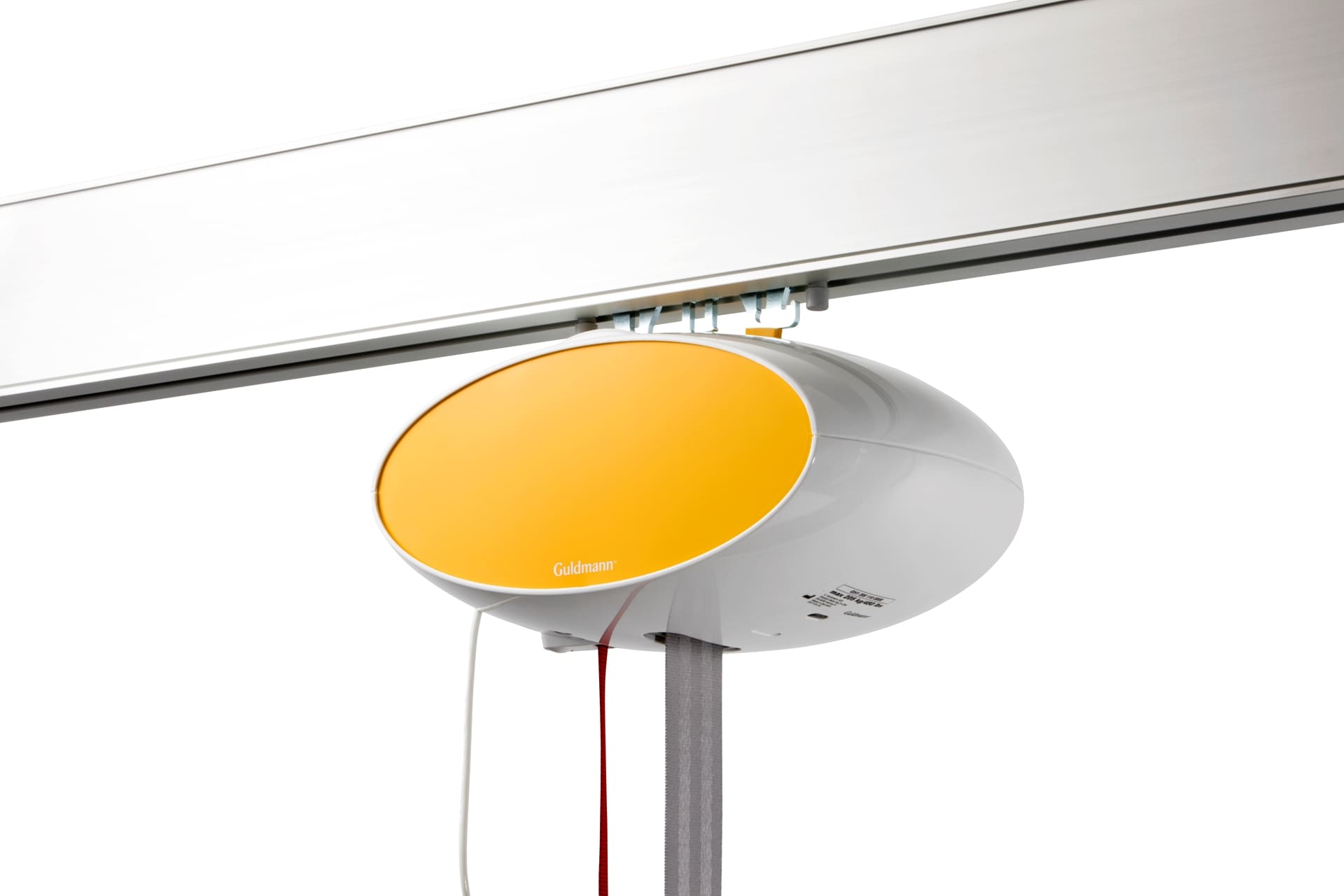

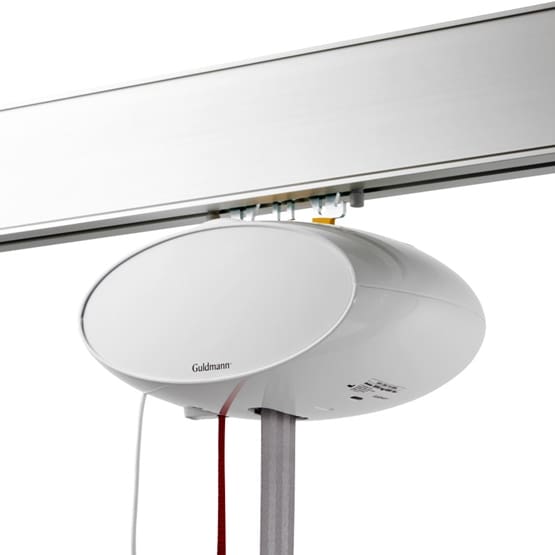

The GH1 F – is a flexible lifting module that is easy to move from one room to another by means of the transport and storage cart. It installs and removes itself automatically from the rail system, and eliminates any lifting, stretching or straining by the care staff in the process of moving and installing the lift.
With the GH1 F you can decide to install rails in several rooms and use fewer lifting modules that in the dayto-day care can easily be moved from one room to another.
Flexible, efficient and safe Once installed the GH1 F gives you exactly the same functions as the GH1 lifting module – and delivers the same benefits as a fixed ceiling lift:
- Lifting height is not limited to the reach of the care staff

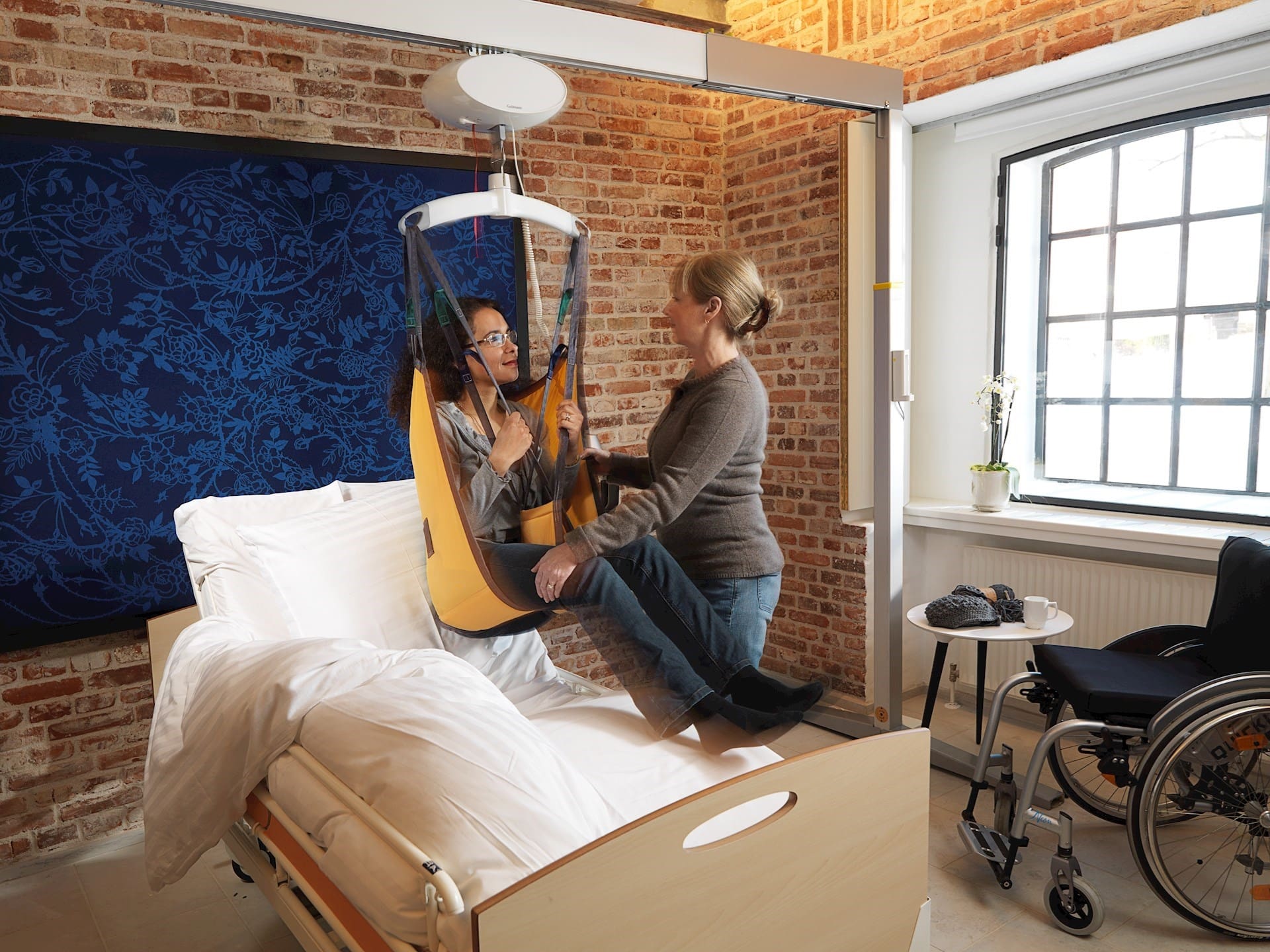

- User can be lifted from the floor or from chair to bed
- High lifting capacity – up to 205 kg (450 lbs)
- High lifting speed – 40 mm per sec with full load

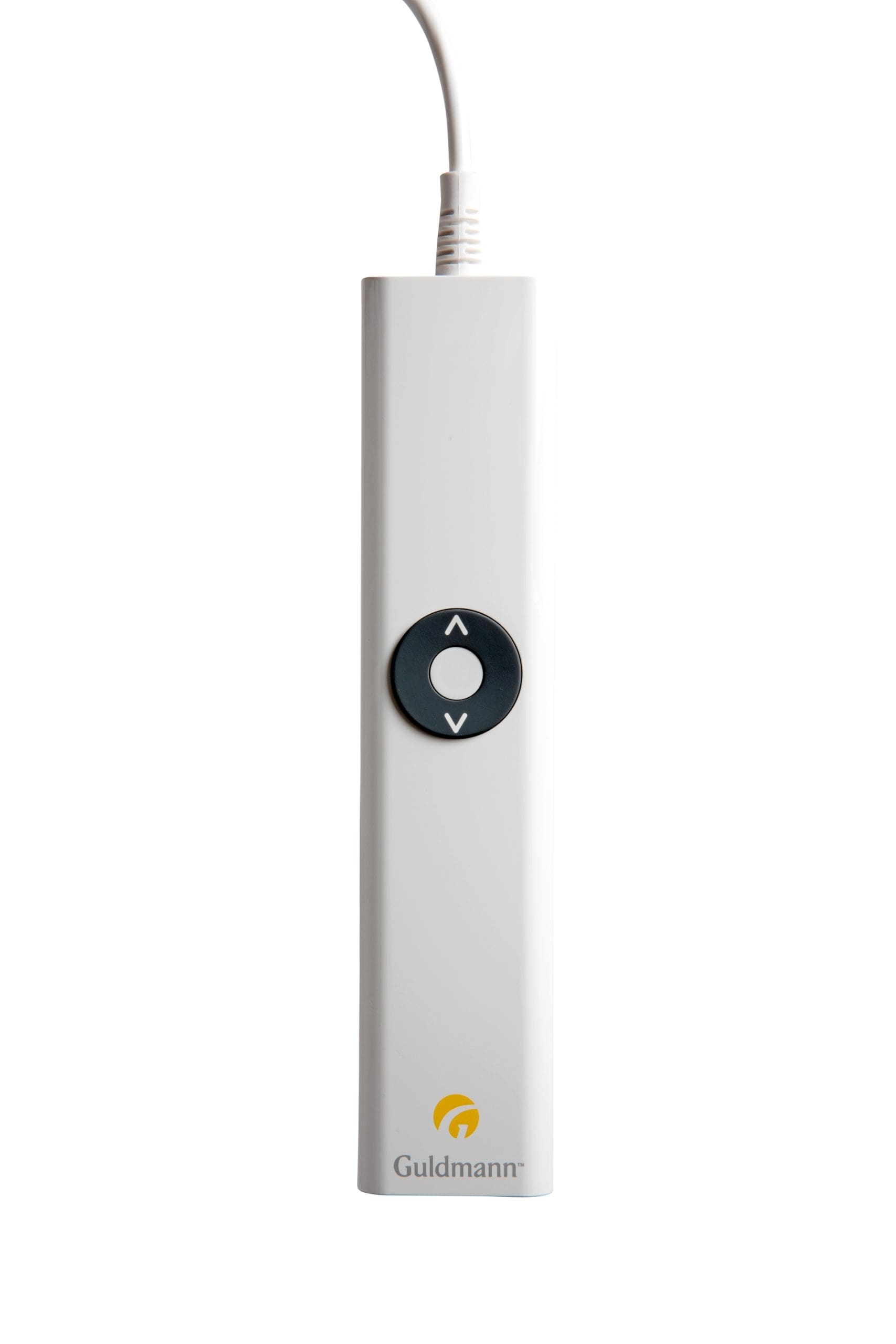

- Operated by an intuitive and easyto-use hand control
- Highly recyclable
- Extremely easy to clean
- GH1 Q – quick-release system makes it easy to relocate the lifting module from one room to another
- A wide range of detachable lifting hangers is available.
Available Models:
| Item Number | Description |
| 552251 | GH1 – ceiling lift |
| 560573 | GH1 F – a flexible, self-installing ceiling lift |
| 552256 | GH1 Q – quick-release system makes it easy to relocate the lifting module from one room to another |
Specifications:
| Weight and Materials | |
| SWL | 205 kg (450 lbs) |
| Weight | 8.0 kg (17.6 lbs) |
| Covers | Impact-resistant UL 94 V-0 flame retardant recyclable plastic |
| Dimensions | |
| A | 580 mm (22 3/4″) |
| B | 353 mm (13 3/4″) |
| C | 161 mm (6 1/3″) |
| D | 185 mm (7 1/4″) |
| E, min. | 416 mm (16 1/3″) |
| F | 2500 mm (98″) |
| Depth of Hoist | 200 mm (7 3/4″) |
| Functions | |
| Operation | Hand control |
| Sound level | 52 dB (A) |
| Safety | |
| Emergency stop | Yes |
| Emergency lowering device | Yes, electrical |
| Control of lifting strap | Yes |
| Cut-off angle | 45° along the rail |
| 10° across the rail | |
| Electronics | |
| On/off | Automatic when used. Soft start/stop. |
| Overload protection | |
| Battery | 1 x 24 V NiMH, 2.1 Ah |
| Max charge time | 3 hours |
| Battery protection | At battery voltage below 22 V the indicator light turns yellow. The hoist stops if the voltage drops below 20 V |
| Power supply | 36 V DC, 30W |
| Supply voltage, power supply | 100-240V AC, 47-63 Hz |
| Number of Lift and Intermittent | |
| Max. number of lifts in series | 32 with 205 kg/1000 mm |
| Charging time | 3 hours |
| Intermittent | 2 min. ON/18 min. OFF |
