Description

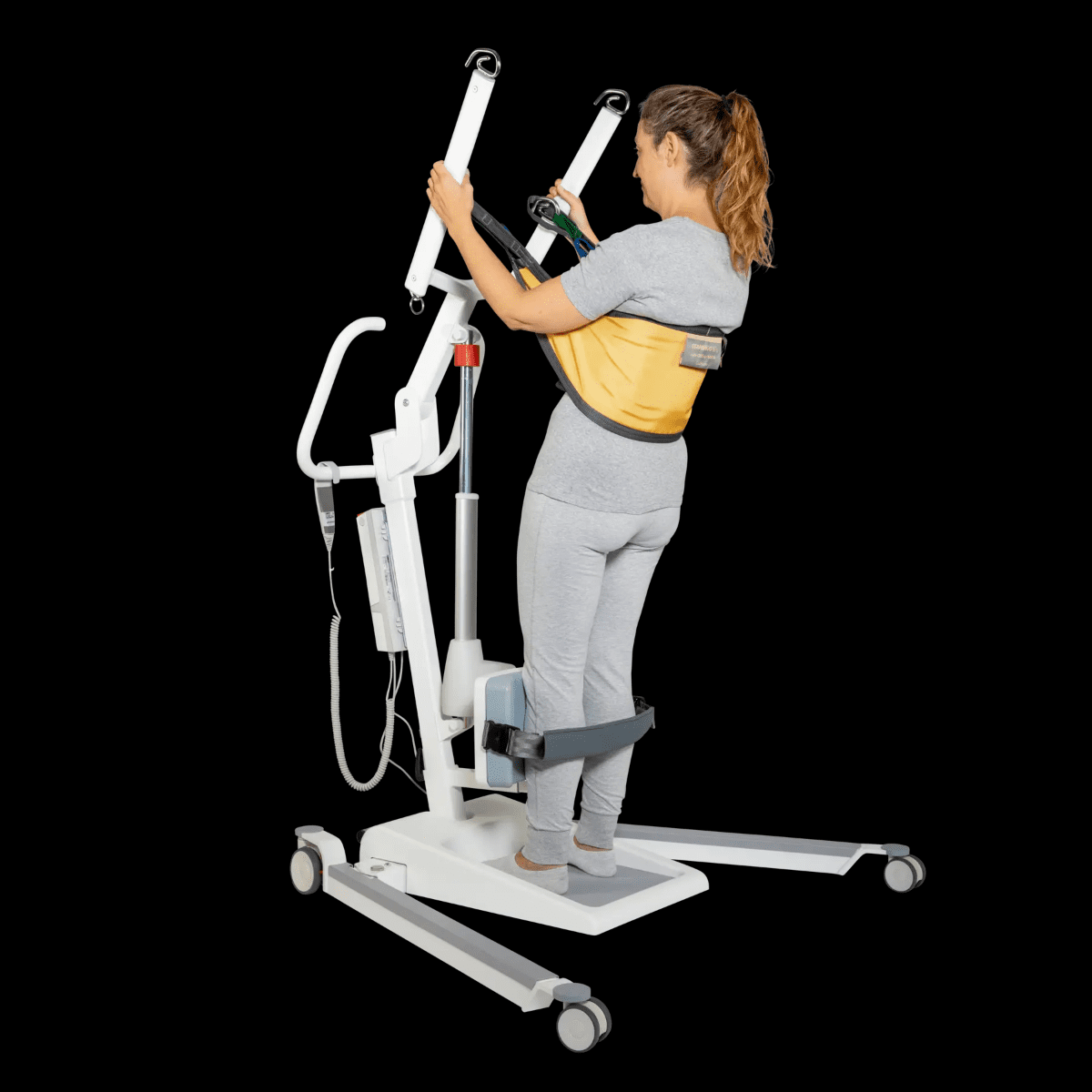

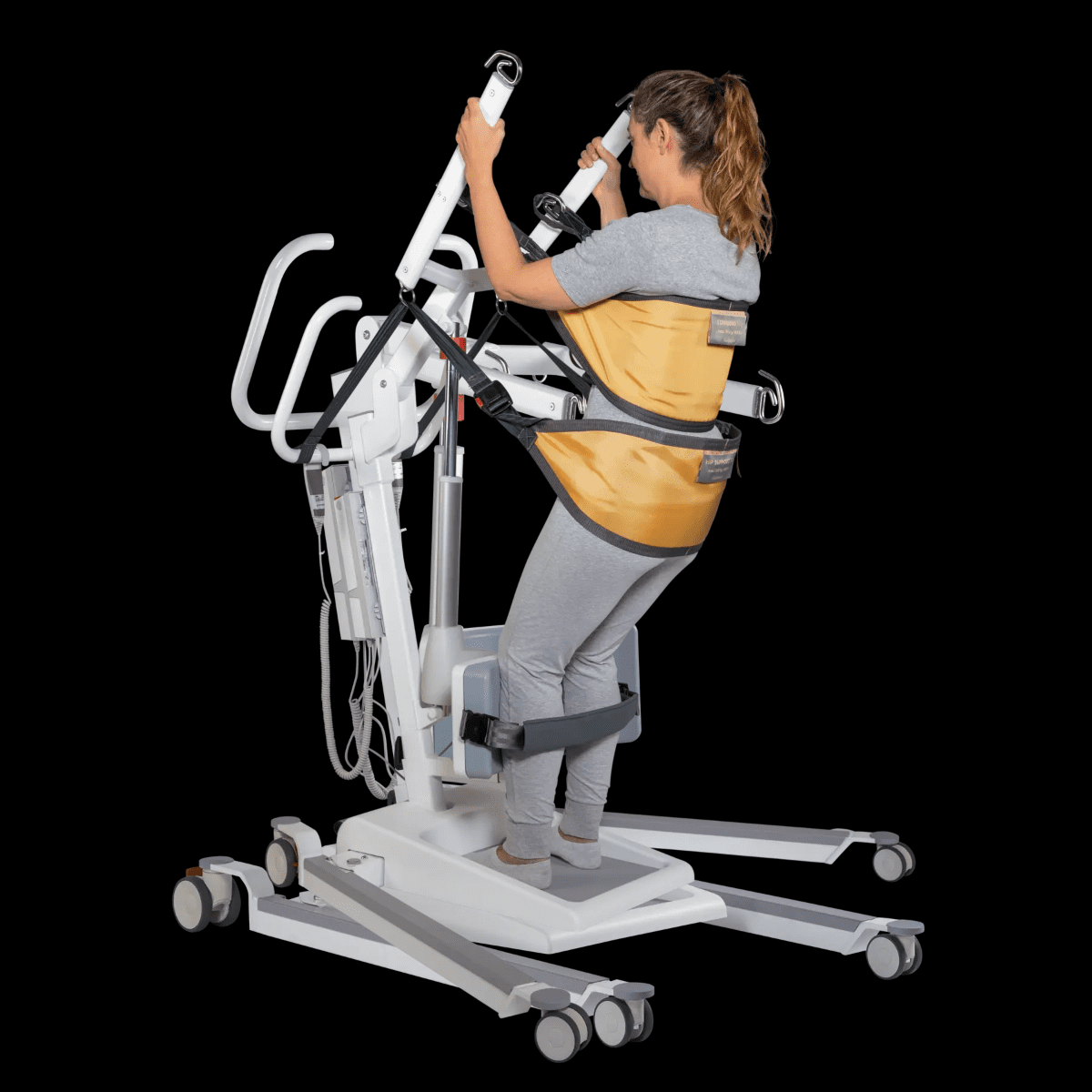

GLS5.2 Active Mobile Standing Lifter features:
Strong, reliable and powerful
- SWL 155 or 205 kg
- Designed for intensive use in professional environments
Meets and exceeds all current norms and regulations in industry
Strong 25,2 V / 2,9 Ah Li-Ion battery ensures long usage time, even in heavy use environments- Shorter charging time to full capacity
- Prolonged battery life
- More lifts from a single charge
- Strong, noiseless and fast Link actuators
- Varied charging options – on board lift and off board lift via extra battery
- Built in and easily accessible docking station for battery
- Extra battery packs as option
- Fully automatic switch mode charger

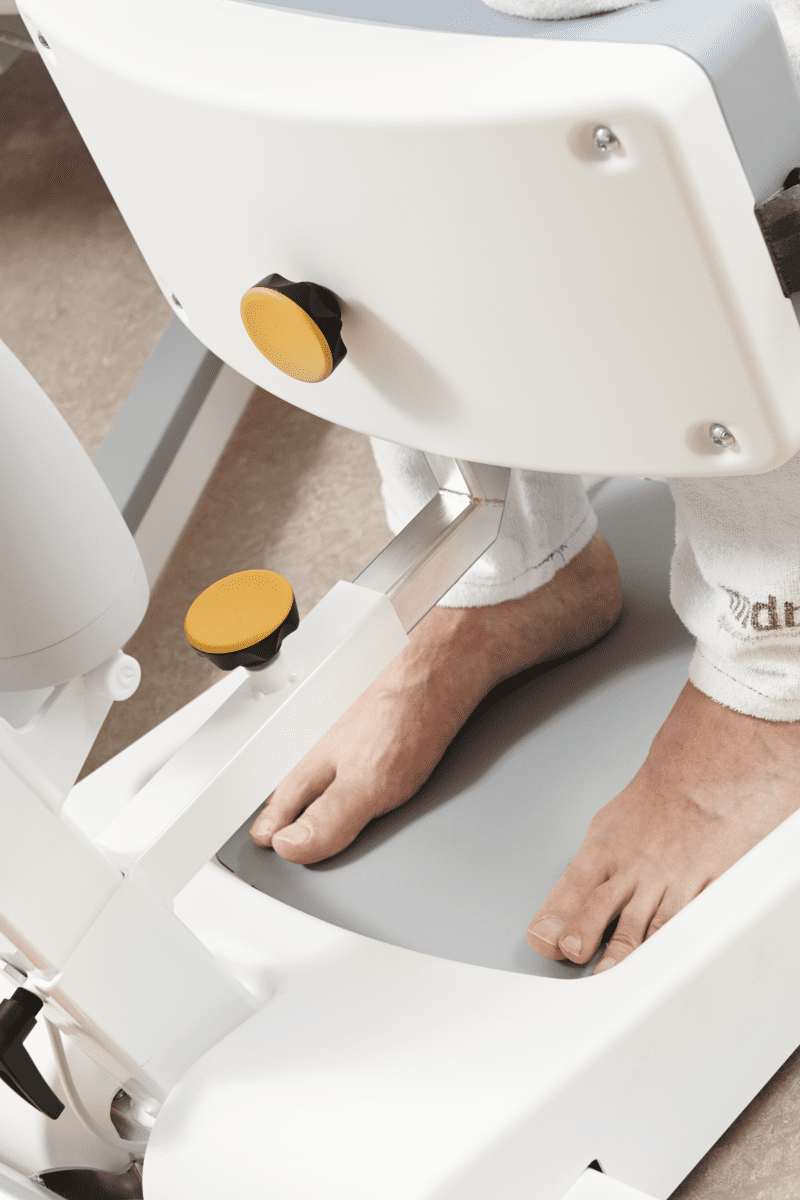

- Removable and easy to clean foot tray
- The battery capacity is indicated in 3 intervals in the hand control;
- Low 0 – 25%
- Medium 25 – 50%
- High 50 – 100%
Audio signal at low battery voltage when approx. 25%.
- Visual service indicator lights up when maintenance is required.

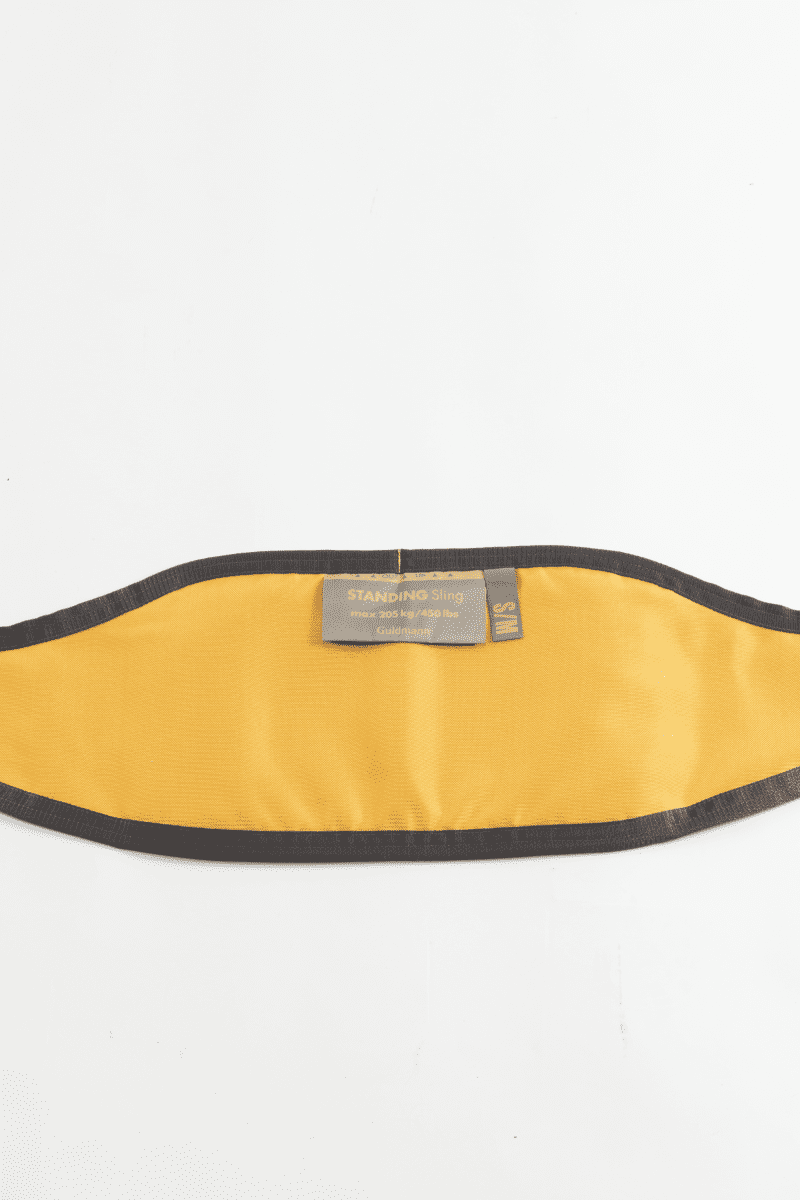

Included: GLS5.2 Standing sling with elastic Support strap
Function: Supports the upper back under the shoulders to the lower back
Suitable for: Persons who can stand up but not raise themselves to a standing position
| Item Number | Size |
| 28336 | Small/Medium |
| 28337 | Large |
| 28339 | X-Large |
| 28340 | XX-Large |
Specifications:

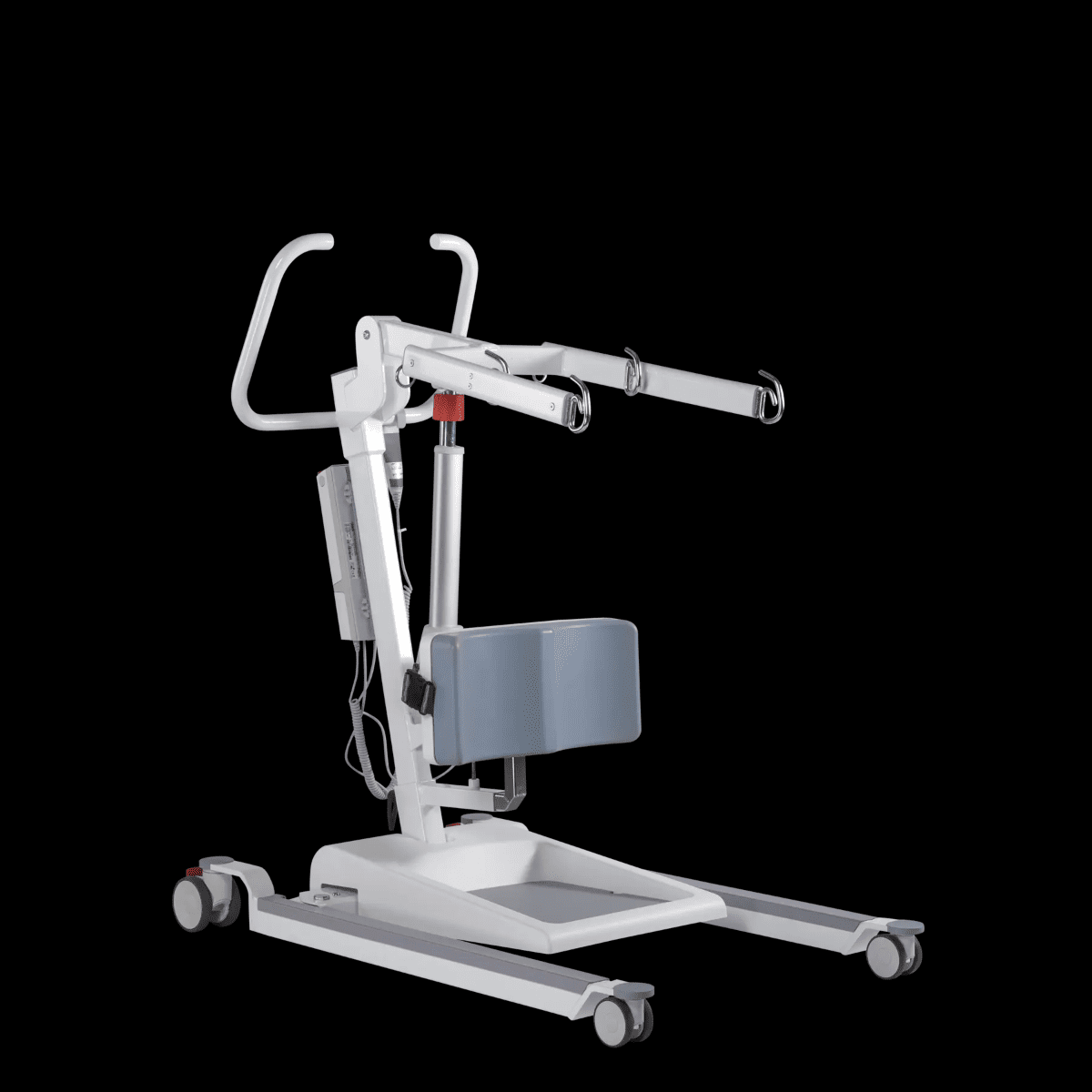

| Item Number | 562201 |
| Functions | |
| Lifting capacity, max | 155/205 kg |
| Operation | |
| Lift | Electric |
| Width adjustment | Electric |
| Knee support | Manual |
| Lifting boom | Manual |
| Weight | |
| Totally | 54 kg |
| Chassis without foot plate & knee pad | 23 kg |
| Mast and lifting boom incl. control box & battery | 20 kg |
| Hand control | 0.25 kg |
| Measurements | |
| A | 25 mm |
| B | 90 mm |
| C | 1770 mm |
| D | 1237 mm |
| E | 575 mm |
| F | 1210 mm |
| G | 460 mm |
| H.min/max | 850/1740 mm |
| I. min/max | 350/450 mm |
| J. min/max | 560/1190 mm |
| K. min/max | 670/1310 mm |
| L min/max | 230/320 mm |
| Turning radius | |
| Turning Radius | 1360 mm |
| Safety Features | |
| Emergency stop | Yes |
| Emergency lowering | Yes, electronic. Mechanical on request |
| Protection against trapping | Yes |
| Electrical parts | |
| On/off | Automatically |
| Integrated Power supply for charging Input | 120-240Vac, 50-60 Hz, 30 VA |
| Battery, replaceable | 25.2 V / 2.9 Ah |
| Charging time | Max. 4 hours |
| Consumption/power of actuator | 24V, max 8A |
| Duty Cycle | Max 10%, max. 2 min on, 18 min off |
| Battery protection | Switches off automatically at low voltage. Diode light up to indicate critical voltage |
| Class of tightness | |
| Mobile hoist | IP 30 |
| Hand control | IPX 4 |
| Integrated Power supply | IPX 6 |
| Battery | IPX 6 |
| Actuator | IPX 4 |
