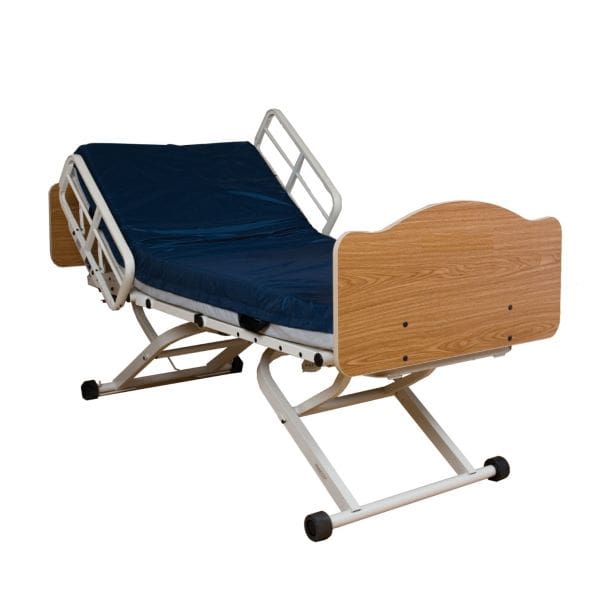

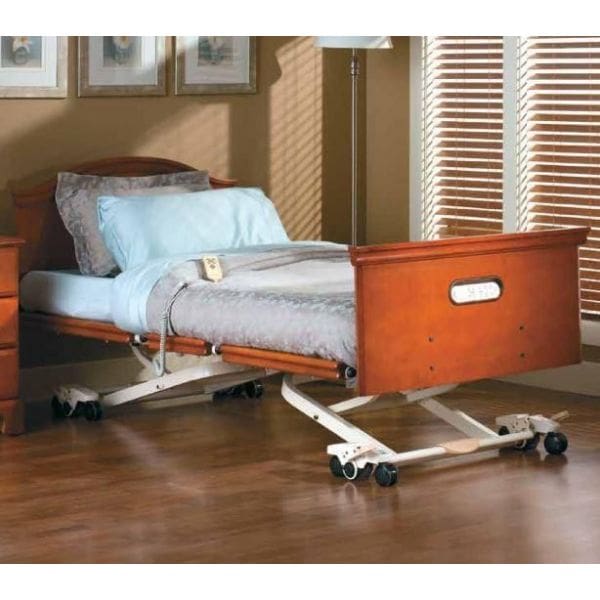

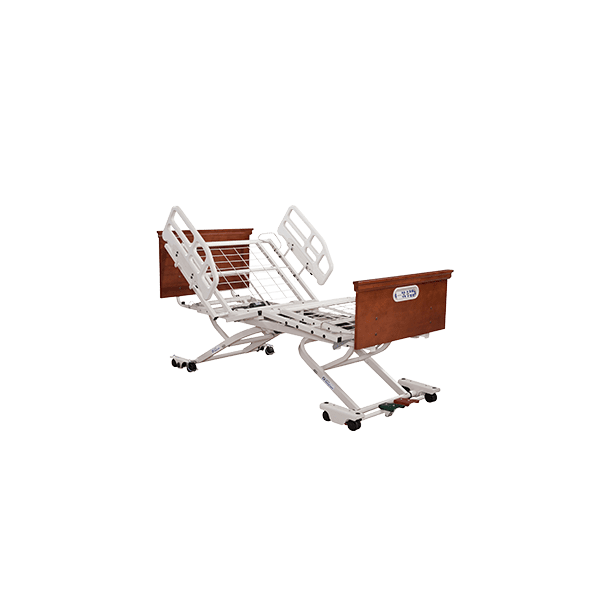

Joerns, EasyCare Hospital Bed Package with Half Rails Included, EP

Description

EasyCare Hospital Bed features:

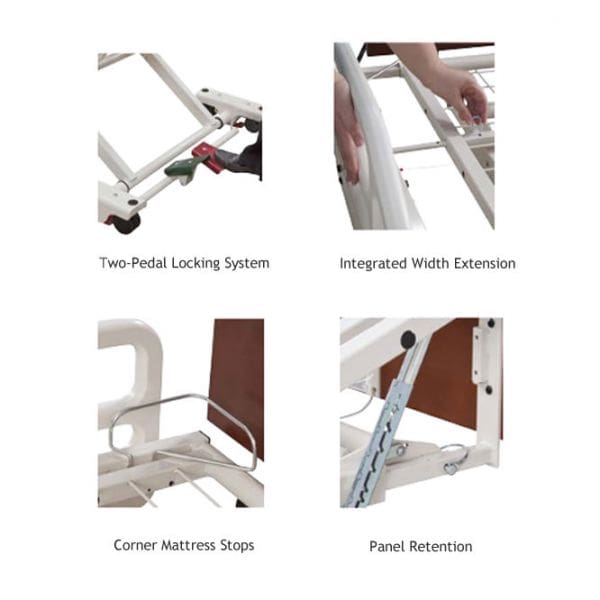

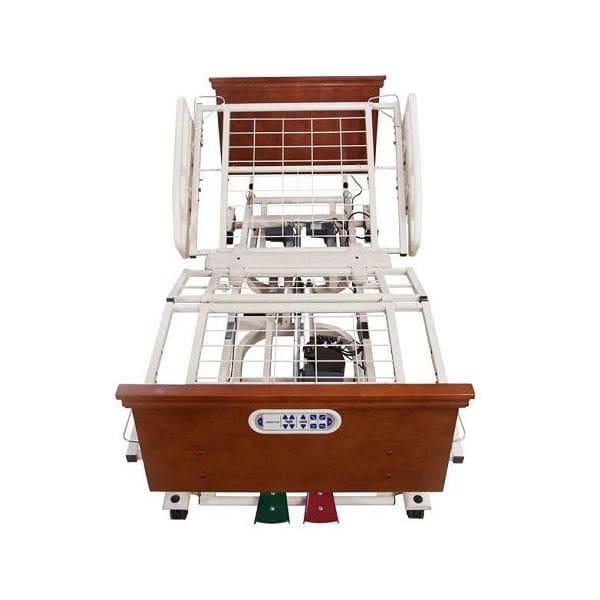

• Intuitive two-pedal locking system is centrally positioned at the foot end of the bed and easily visible due to color-coded status indicators
• Integrated width extension provides a sleep surface that expands and retracts from 35″, 39″, and 42″ and quickly adjusts to move through doorways, while compliant to HBSW entrapment guidelines
• Corner mattress stops provide greater security of the mattress surface and easily adjust to the expanded widths of the frame
• A restructured and more robust sleep surface and panel mounting mechanism designed to provide added stability and extended product life

Specifications:

• Roll in Low 35″ x 80″ Advanced Positioning
• Roll in Low Integrated Width Expansion 35″ to 42″ Advanced Positioning
• Roll at Any Height 35″ x 80″ Advanced Positioning
• Roll at Any Height Integrated Width Expansion 35″ to 42″ Advanced Positioning
• Safe Working Load 600 lbs
• Product Weight Roll-in-Low 220 lbs
• Product Weight Roll-at-any-Height 230 lbs
• Sleep Surface Travel Range 7″ to 30″
• Underbed Clearance 23¾”
• Max. Back Angle 65 degrees to horizontal
• Max. Knee Angle 35 degrees to horizontal
• Safety Standards: UL60601-1, CAN/CSA C22.2 NO. 601.1, IEC 60601-2-52, CAN/CSA C22.2 NO. 601.2.52

Upgrade Options:

• Positioning:
  • Standard (6 function) – Ergonomic pendant with Hi/Lo, head, knee

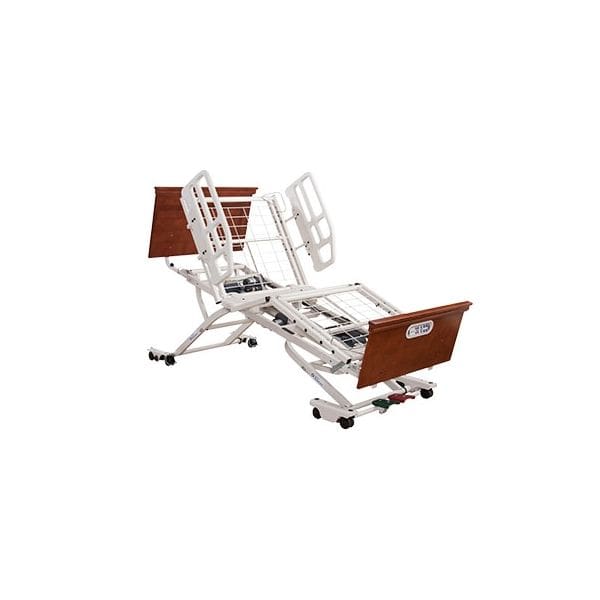

  • Advanced (8 function) – Back-lit ergonomic pendant with Standard controls + Comfort Chair + Auto Transfer
• Mobility:
  • Standard – Roll-in low only
  • Roll at any height
• Staff Control (in foot panel):
  • Standard: Hi/Lo, head, knee, Lock-out
  • Advanced*: Standard + Comfort Chair + Auto Transfer + Trendelenburg / RT + SafeLight Control (SafeLight extra)

• Accessories (Optional)
  • Advanced Staff Control (in Foot Panel)
  • Floor mat – 33″ x 60″ x 2″
  • IV Rod
  • Half Length Rail Pad (Each)
  • Battery Backup, Charger & Wall Mount Bracket
  • SafeLight (requires AdvanceCare staff control)
  • Drainage bag holder
  • Trapeze & Adapter for EasyCare

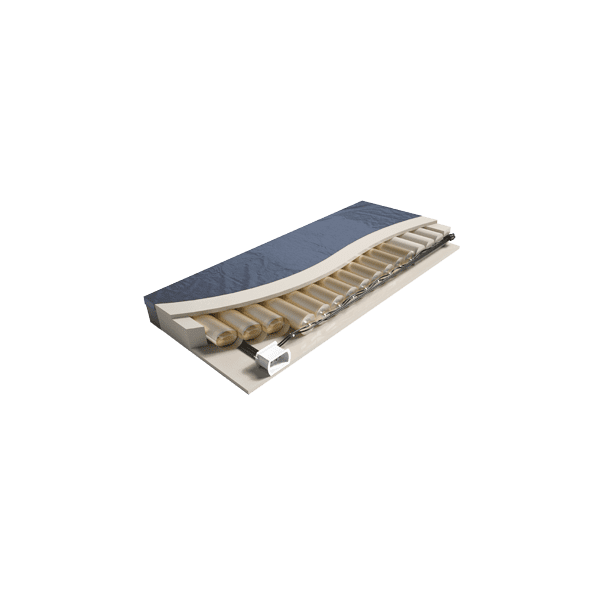

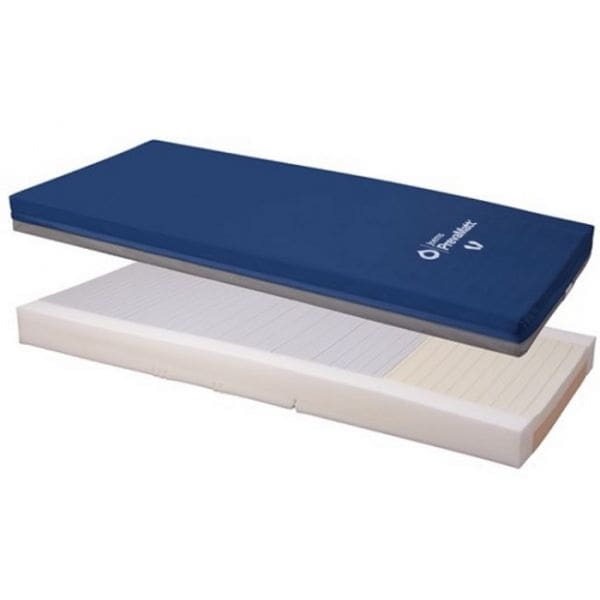

  • Pan Deck Mattress Surface – 80″ or 76″ length
  • Head of Bed Angle Indiciator
  • Trend Angle Indicator
  • Panel Mount Pendant Holder

*Advance Staff Control requires Advanced Positioning
**SafeLight Requires Advanced Staff Control and Advanced Positioning

Warranty:

• Bed is guaranteed for 1 Year from Date of Delivery against defects in materials or workmanship under normal usage circumstances
• 1-Year Warranty includes all mechanical and electrical components
• 7-Year Warranty on Steel Structural Components
• Lifetime Warranty on Welds
