Permobil, Atlas Hybrid Therapeutic Surface, ATL3580

Description

Atlas Hybrid Therapeutic Surface features:

• Suitable for vulnerable clients at risk for pressure injuries
• Interconnected chambers and valves for pressure redistribution
• Converts to a powered air surface with APT
• Sloped foot section helps reduce pressure
  from heels
• 4” wide firm borders for safe transfers
• Startex fluid-resistant, four-way stretch cover

Specifications:

• Maximum weight capacity:700 lb
• Atlas is 7”H, available in:
  • 35″ x 80″
  • 39″ x 80″
  • 42″ x 80″

Powered Air Surface with the addition of a digital pump (Sold separately)

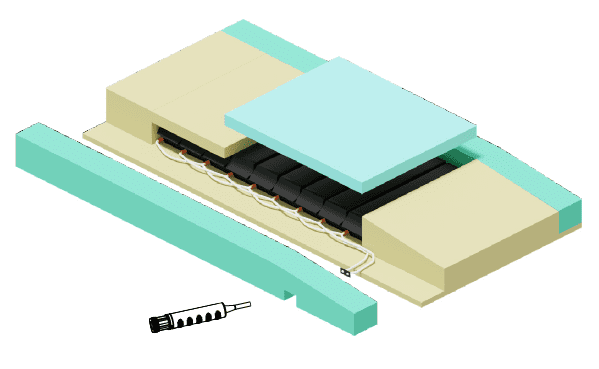

• The 4” high interconnected chambers offer great pressure redistribution under the 2” high visco gel swirl foam and 1” standard foam top layers

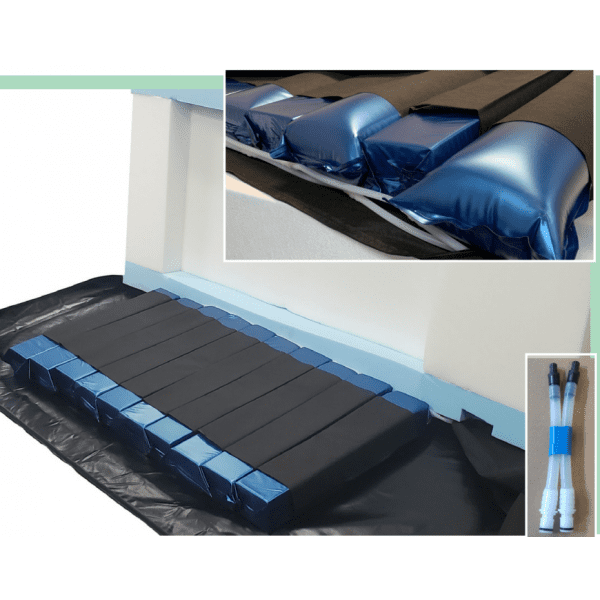

• These chambers measure 30” wide by 52” long and fit within the cutout starting under the head area, continuing under the full torso, and stopping at the foot section
• When attached to the pump, you can see the alternating therapy provided by the foam/air chambers
• Chambers are held in place with a PU fabric and the tubing for the pump runs along the side
• A valve closure kit can be used to keep the system closed when not attached to the digital pump
• The entire mattress is encased in a fire barrier sock fabric to meet fire retardant standards, and then a Startex cover to protect the foam from fluids
