Description

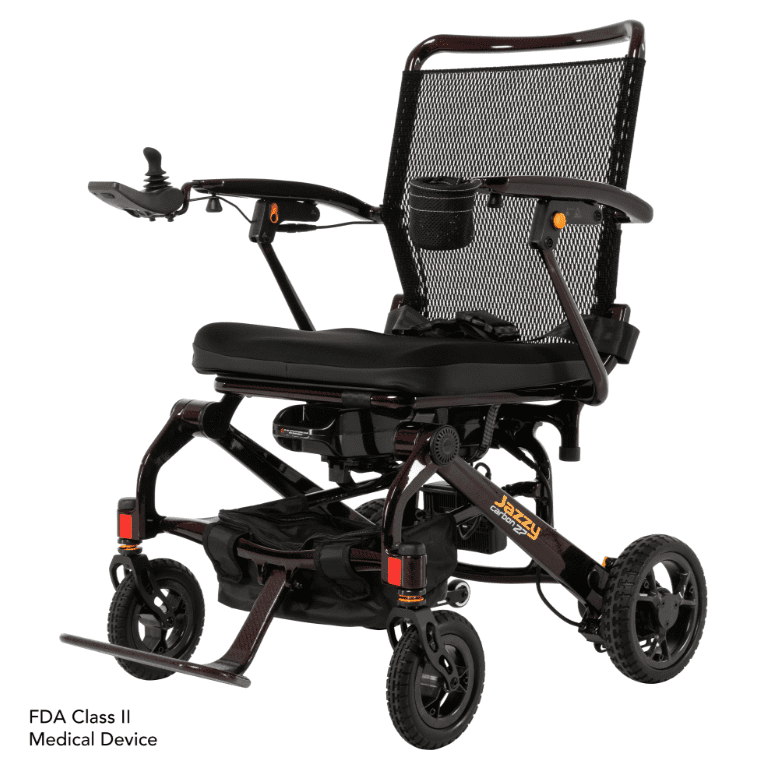

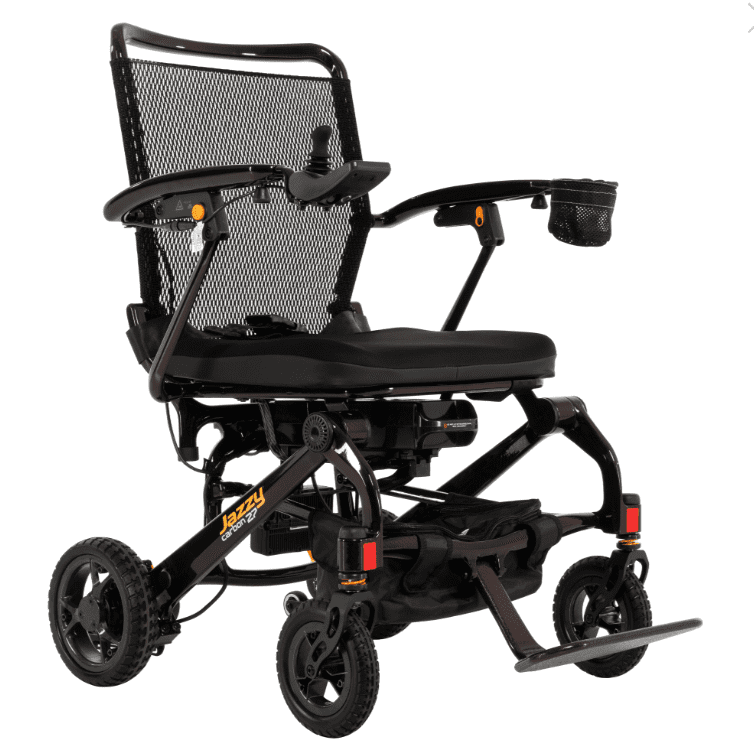

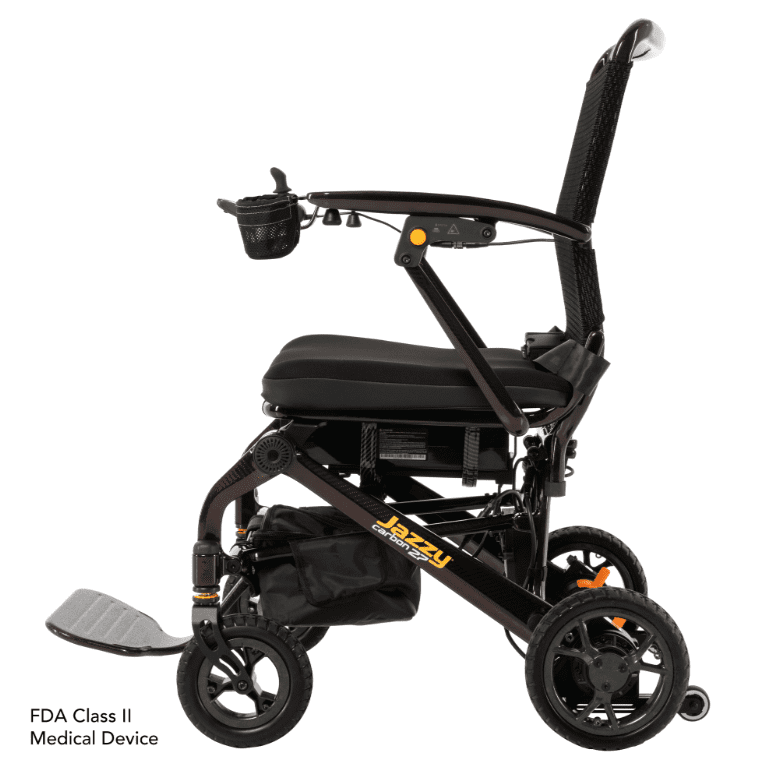

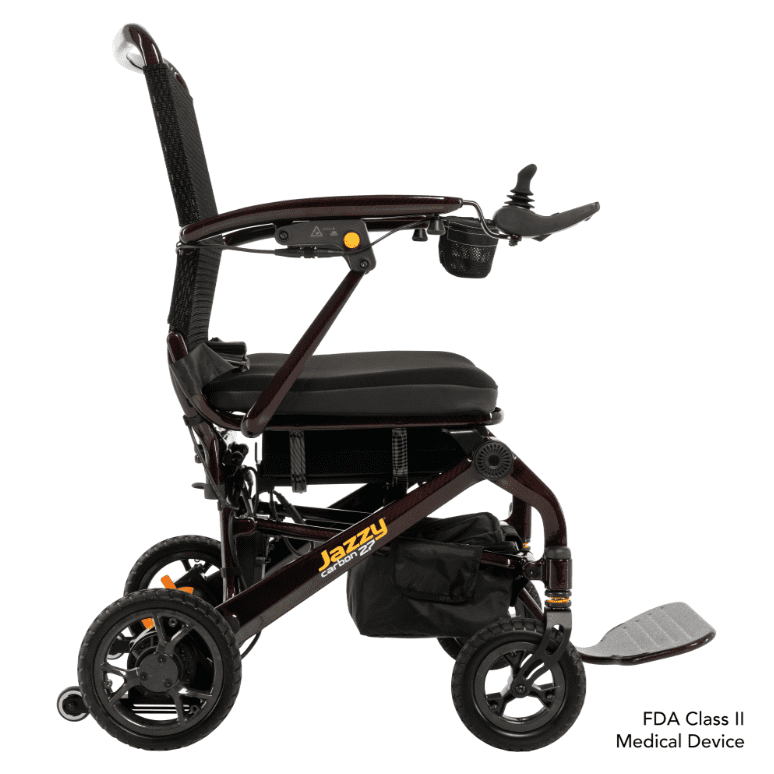

Jazzy Carbon 27 Power Wheelchair features:
- Unit weighs 27.8 lbs. without the battery
- 300 lb. weight capacity
- Top speed up to 3.7 mph
- Battery range up to 9.3 miles
- Durable carbon fiber frame

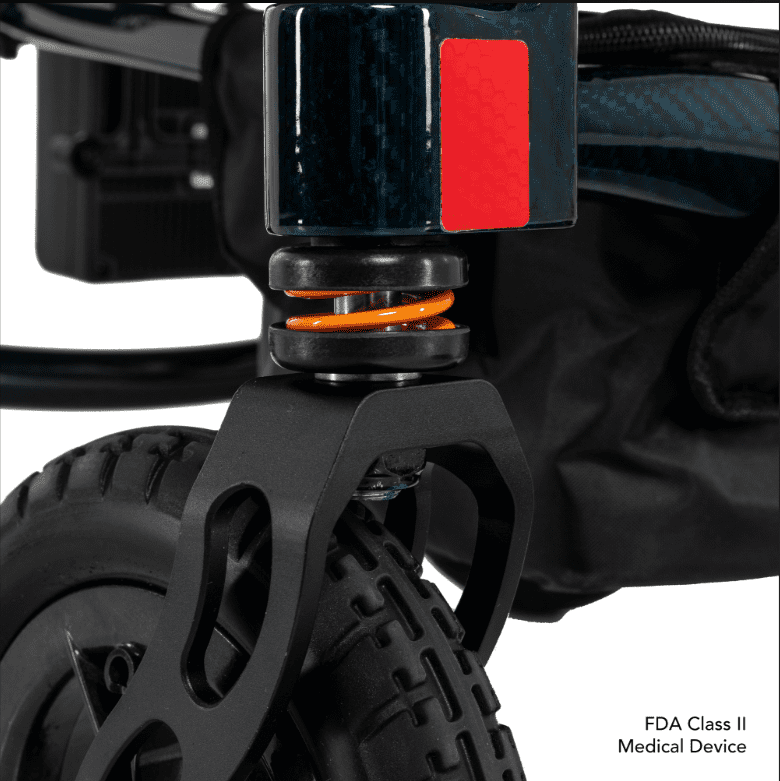

- Front suspension

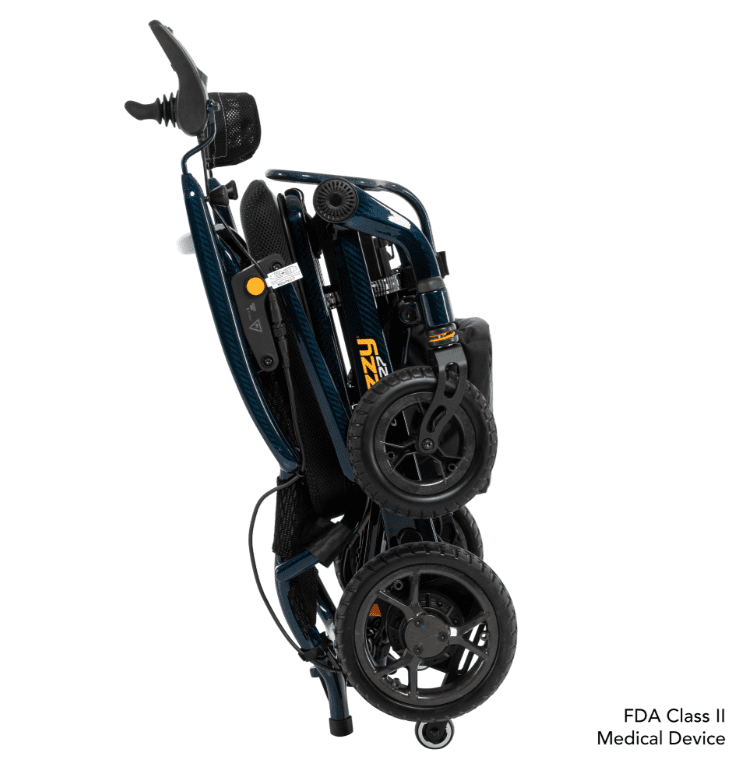

- Easily fold design secures with a strap
- Folded dimensions: 27.5” L x 23.4” W x 13.38” H
- Flip up lightweight carbon fiber arms
- 17″ x 17″ seat (Standard)
- Durable and lightweight carbon fiber frame
- 12 Ah lithium battery is airline-compliant** (Standard)

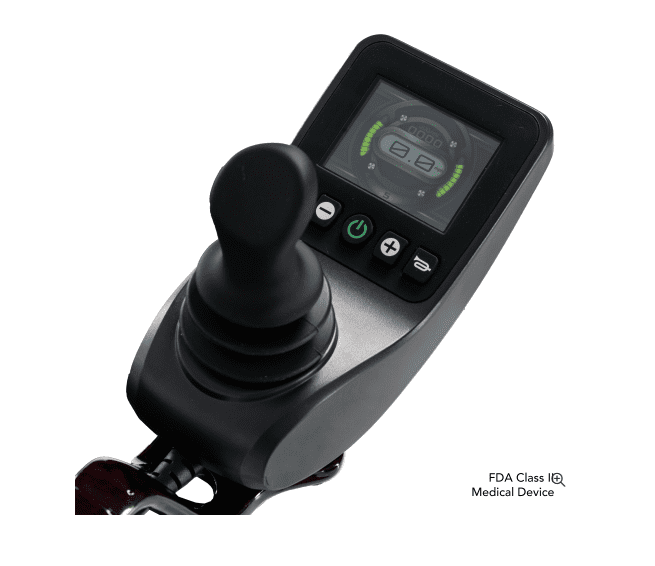

- Quick disconnect LCD joystick with USB-C port & puddle light that can be affixed to either armrest
- Mesh cup holder, cushion, adjustable lap belt, and under-seat storage (Standard)
- K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria.
- Available Color Options: Black Cherry and Night Sky
Specifications:
| Part Number | Jazzy® Carbon 27 |
|---|---|
| Weight Capacity | 300 lb (136 kg) |
| Maximum Speed* | Up to 3.7 mph (6 kph) |
| Ground Clearance | 1″ at motor |
| Turning Radius** | 33.4″ |
| Overall Length | 35.04″ |
| Overall Width | 23.43″ |
| Suspension | Full front suspension only |
| Tires | Front: 6.89″ Rear: 8.27″ |
| Range Per Charge* | Up to 9.3 mi (15 km) per charge |
| Product Weight | 27.8 lb (12.6 kg) without batteries |
| Standard Seating | Dimensions: 17″ x 17″ seat sling with removable cushion |
| Motor Output | 24V 250W Brushless |
| Brakes | Regenerative and electromechanical |
| Battery Requirements | Type: Lithium battery box Size: 12 Ah |
| Battery Weight | 4.63 lb (2.1 kg) |
| Battery Charger | 2 Amp |
| Warranty | 5 years on frame; 1-year limited on electronics 1-year limited on drivetrain 1-year limited on battery |
