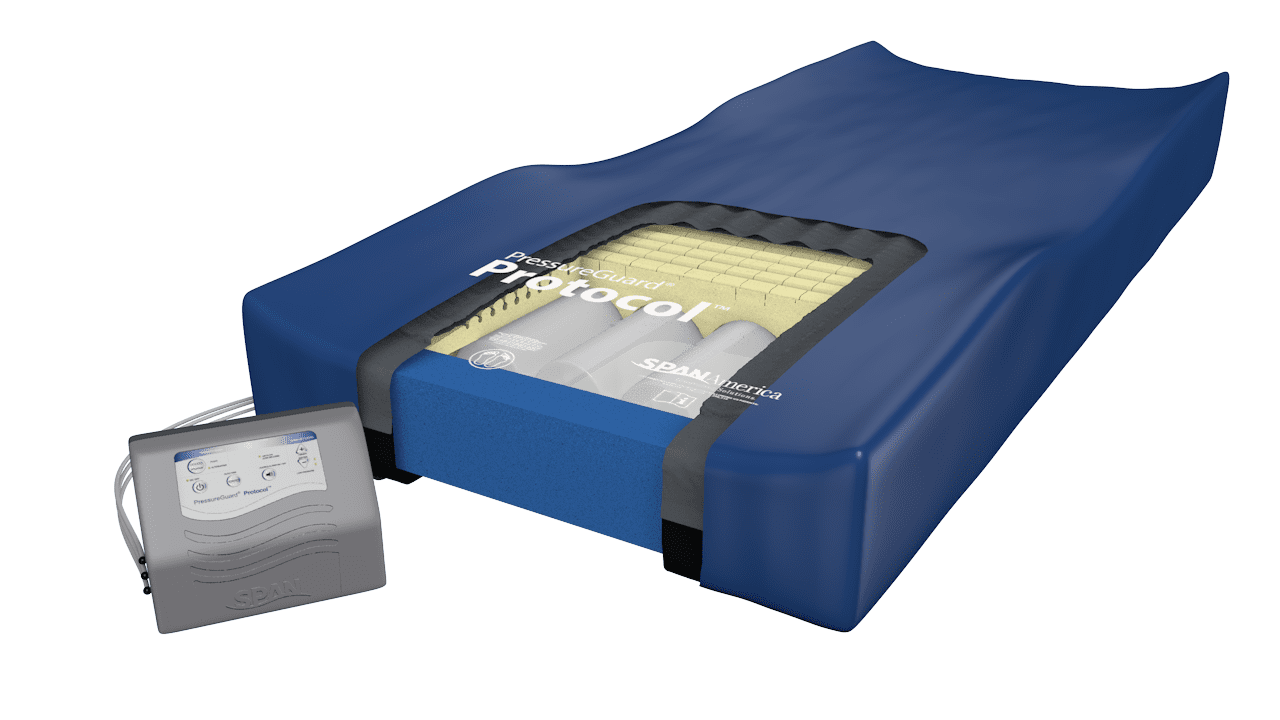

Span America, PressureGuard® Protocol® Complete System (Mattress, Control Unit & Coverlet)

$5,813.00

PressureGuard® Protocol® Complete System (Mattress, Control Unit & Coverlet) by Span America Microclimate Management with Alternating Pressure Therapy Protocol’s proprietary air delivery cover design supplies a gentle flow of air directly to the underside of its highly vapor permeable coverlet, carrying away excess moisture vapor to help protect vulnerable skin. Thanks to its innovative design, the Protocol’s efficient control unit generates substantially less heat and noise than traditional high-output low air loss blowers while consuming less power. Caregivers can select subtle alternating pressure or powered flotation treatment modes. Auto firm mode provides additional surface stability for ADLs, transfers, and feeding…

Size
SKU: P7535-29 P8035-29 P8435-29 23173 17108
Category: , , ,
Tags: , ,

Description

PressureGuard® Protocol® Complete System features:

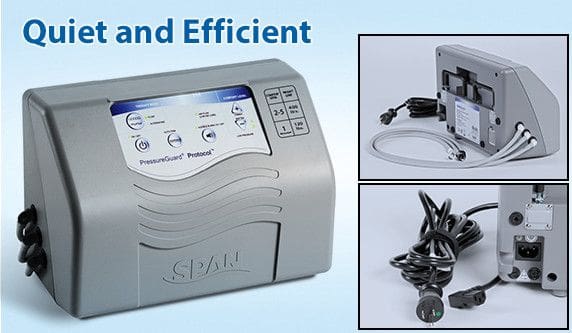

  • Efficient system design generates substantially less noise and consumes less than half the power of many traditional, blower-based “roll-up” surfaces.
  • Alternating pressure mode gently changes loading across the surface in a 10-minute cycle.
  • “Float ” mode provides powered flotation therapy.
  • Simple comfort adjustment, including ultra-soft “Max. Immersion” setting for users under 120 lbs.
  • Selectable audible alarm and indicator light for low pressure notification.
  • Timed (30-minute) “Auto Firm” function for added stability during transfers, ADLs & CPR.
  • Can maintain inflation during power interruption and transport.
  • Outer coverlet
    • Vapor-permeable, yet fluid-proof

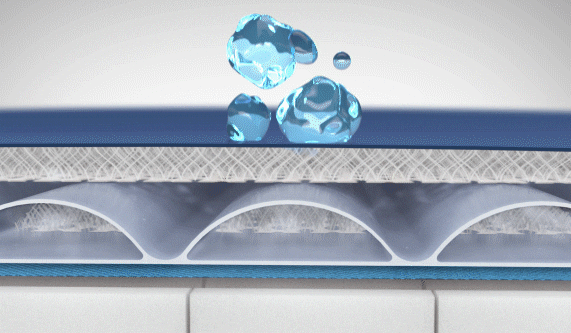

    • Air Diffusion Matrix™ layer outperforms typical batting
    • Wipes clean in place with standard hospital-grade cleaners
    • Machine launderable
  • Inner air delivery cover
    • Dedicated air supply
    • Continuous airflow through Air Diffusion Matrix™ layer
    • Sweeps away moisture vapor before it can re-form as a liquid
    • Reduces maceration, especially effective at the sacrum
  • Available with Raised Perimeter

Specifications:

Weight limit: 400 lbs. (500 lbs. at 42”)
Warranty: 18 months non-prorated
Mattress Weight: approx. 22 lbs. (28 lbs. at 42”)
Control Unit Weight: 11.5 lbs. Dimensions: 14” x 9.25” x 6.5”
Voltage: AC 110-120V Frequency: 60 Hertz



Item Number Description
P7535-29 Protocol with control unit, 75″L x 35″W x 7″H
P8035-29 Protocol with control unit, 80″L x 35″W x 7″H
P8435-29 Protocol with control unit, 84″L x 35″W x 7″H
23173 Protocol with control unit, 80″L x 42″W x 7″H
17108 Protocol with control unit, 84″L x 42″W x 7″H
69212 Protocol with Raised Perimeter with control unit 80″L x 35″W x 7″H (9″H side)
33905 Protocol with Raised Perimeter with control unit 84″L x 35″W x 7″H (9″H side)
72235 Protocol with Raised Perimeter with control unit 80″L x 42″W x 7″H (9″H side)
81990 Protocol with Raised Perimeter with control unit 84″L x 42″W x 7″H (9″H side)
