Description

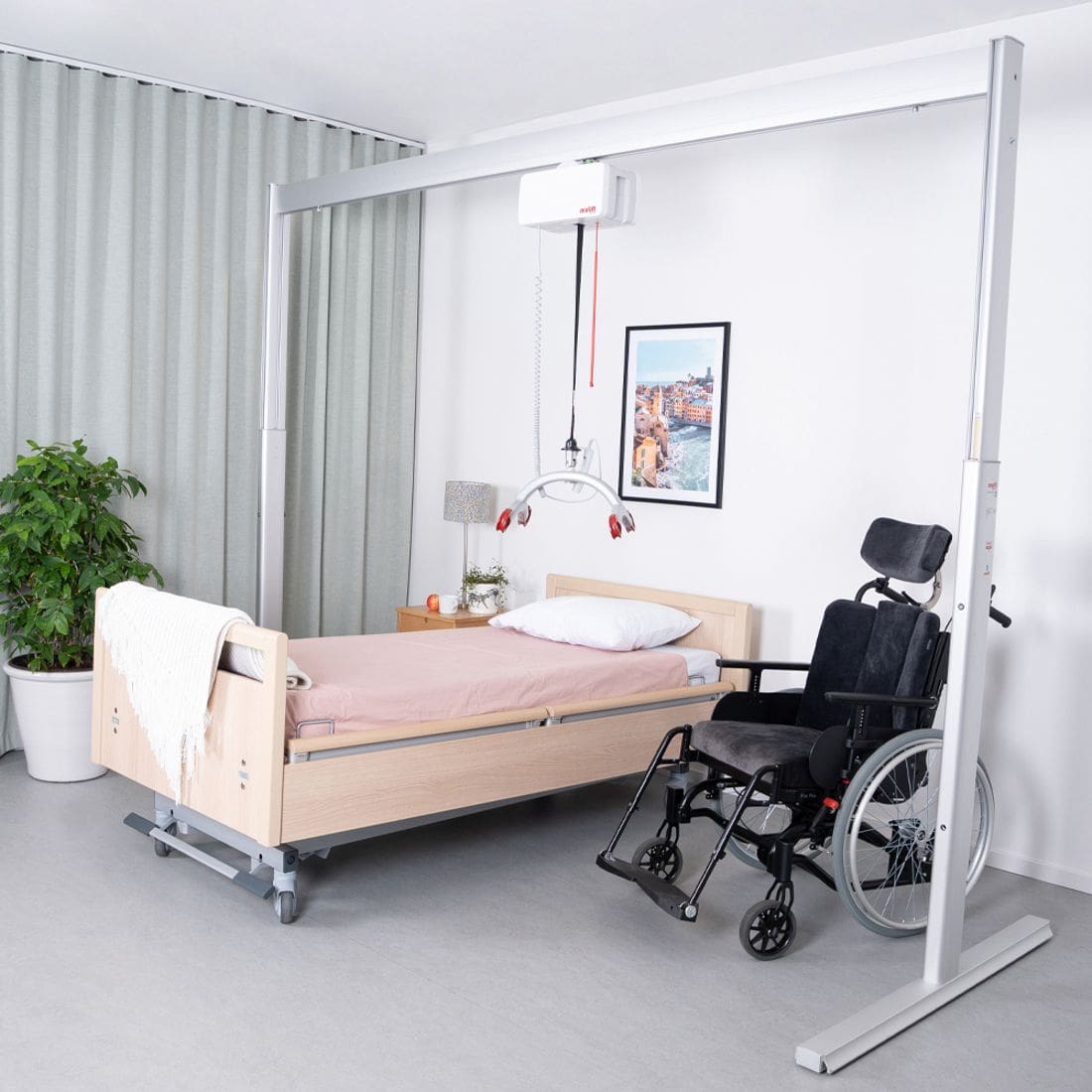

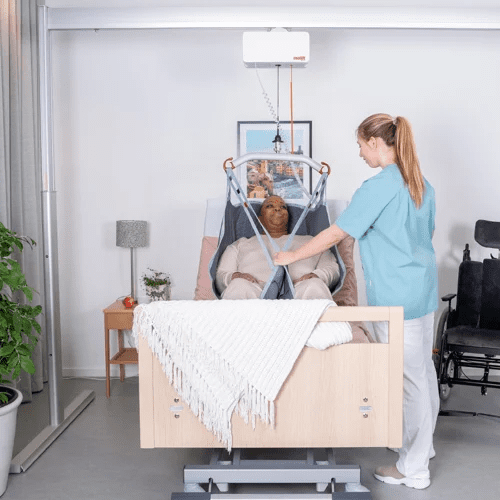

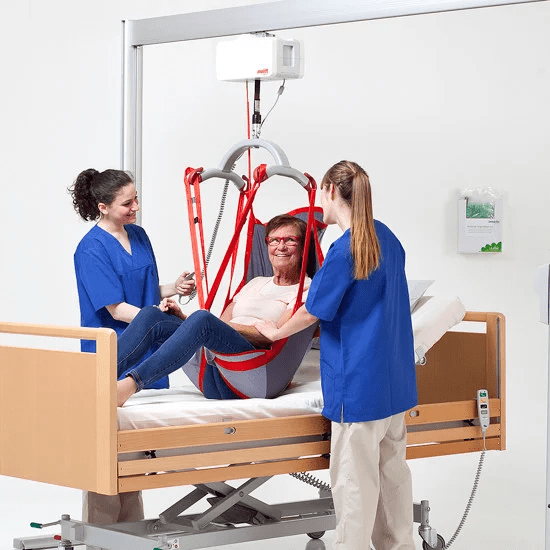

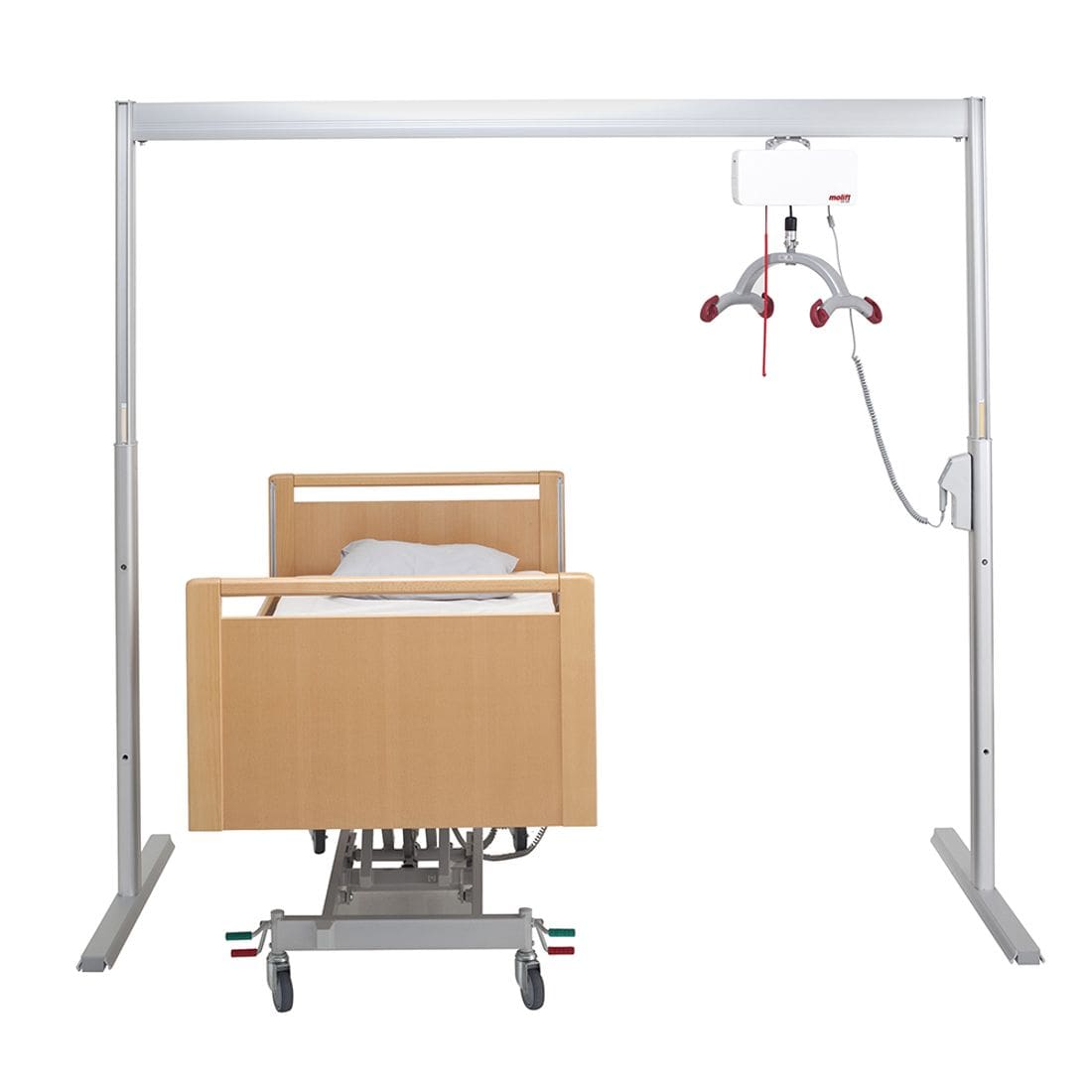

Molift Duo Freestanding Unit features:
Easy to install
Due to the lightweight system it is easy to install the gantry and move it to a new location.
Supreme stability
The gantry system has supreme stability and a functional design.
Adjustable height
Height positions can be set at four fixed positions from 225 cm up to 255 cm. Adjust the height with the quick release pin.

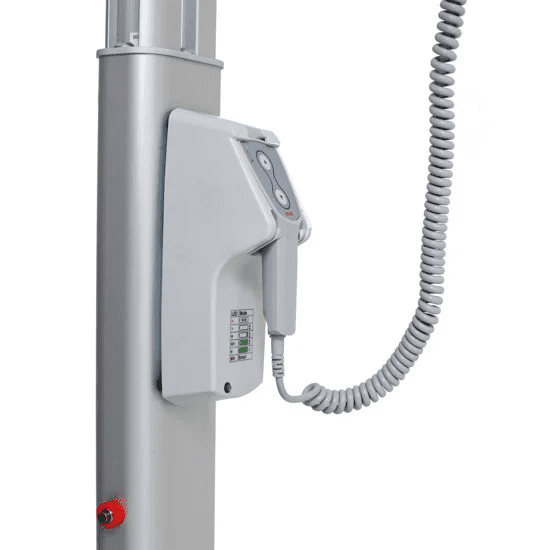

Charging of hoist motor
Molift hoist motors can easily be charged thorough the hand control or optionally through in-rail charging.
Specifications:
| Specifications | |||
|---|---|---|---|
| Depth (mm) | 1200 | Safe working load (SWL) (kg) | 300 |
| Height (mm) | 2250 – 2550 | Transport height (mm) | 1700 |
| Material | Anodized aluminum, plastic | ||
|
Item number |
Rail length (mm) |
Weight (kg) |
Width (mm) |
|
|---|---|---|---|---|
| Molift Duo 2000 | 1600013 | 2000 | 38 | 2150 |
| Molift Duo 2500 | 1600015 | 2500 | 40 | 2650 |
| Molift Duo 3000 | 1600017 | 3000 | 42 | 3150 |
| Molift Duo 3500 | 1600019 | 3500 | 44 | 3650 |
Optional Accessories:
Leveling kit
Leveling pads for adjusting the leg height of Molift Duo
