Description
Molift Quattro Freestanding Hoist Unit features:

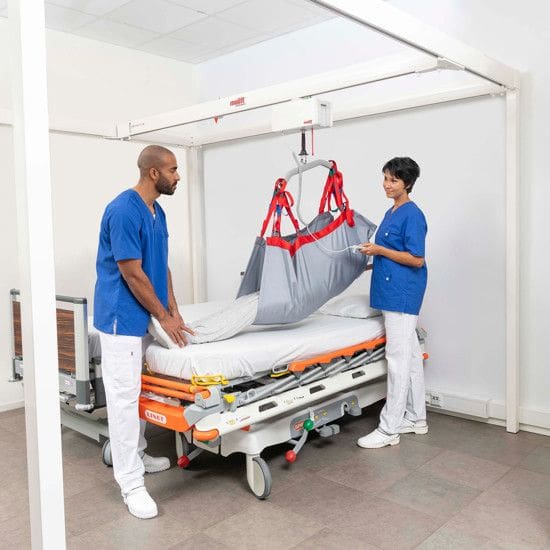

Supreme stability and maneuverability

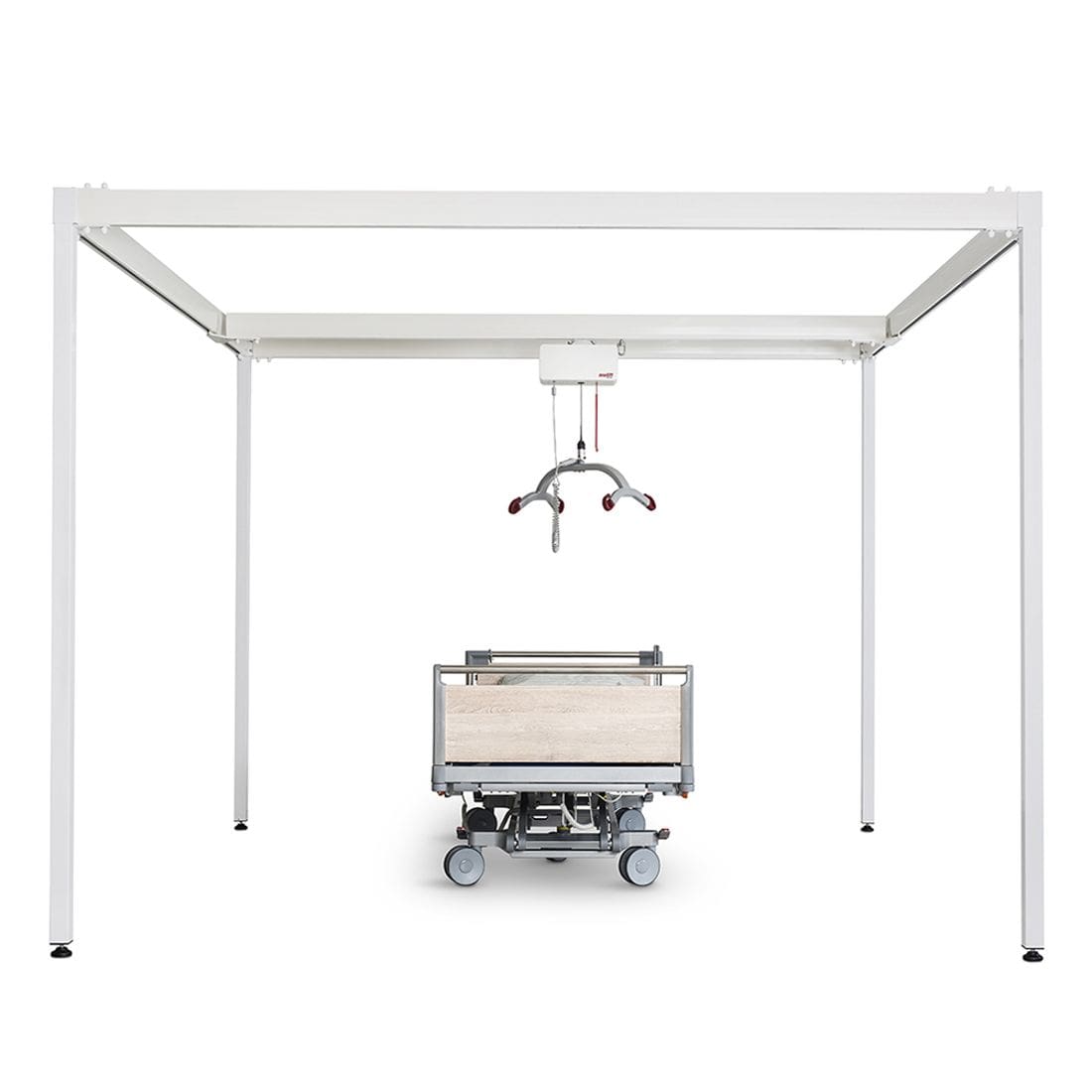

Molift Quattro is a gantry system which has supreme stability and provides access in all lifting situations.
Easy to install
Molift Quattro is designed to be installed in a short time by one or (preferably) two persons.
Easy to charge
The hoist motor can easily be charged through the hand control or through the in-rail charging option
Specifications:
| Specifications | |||
|---|---|---|---|
| Expected lifetime | 10 years | Material | Steel, anodized aluminum, plastic |
| External height with adjustable feet (mm) | 2290 | Safe working load (SWL) (kg) | 300 |
| Height (mm) | 2330 | ||
|
Item number |
Depth (mm) |
Rail length (mm) |
Weight (kg) |
Width (mm) |
|
|---|---|---|---|---|---|
| Molift Quattro 3 | 1600030 | 3160 | 3000 | 111 | 3160 |
| Molift Quattro 4 | 1600035 | 4160 | 4000 | 132 | 4160 |
Optional Accessories Available:
Adjustable foot
Molift Quattro can be optimized with height-adjustable feet on each leg.
