Future Mobility, Orion II Tilt-in-Space Wheelchair

Description

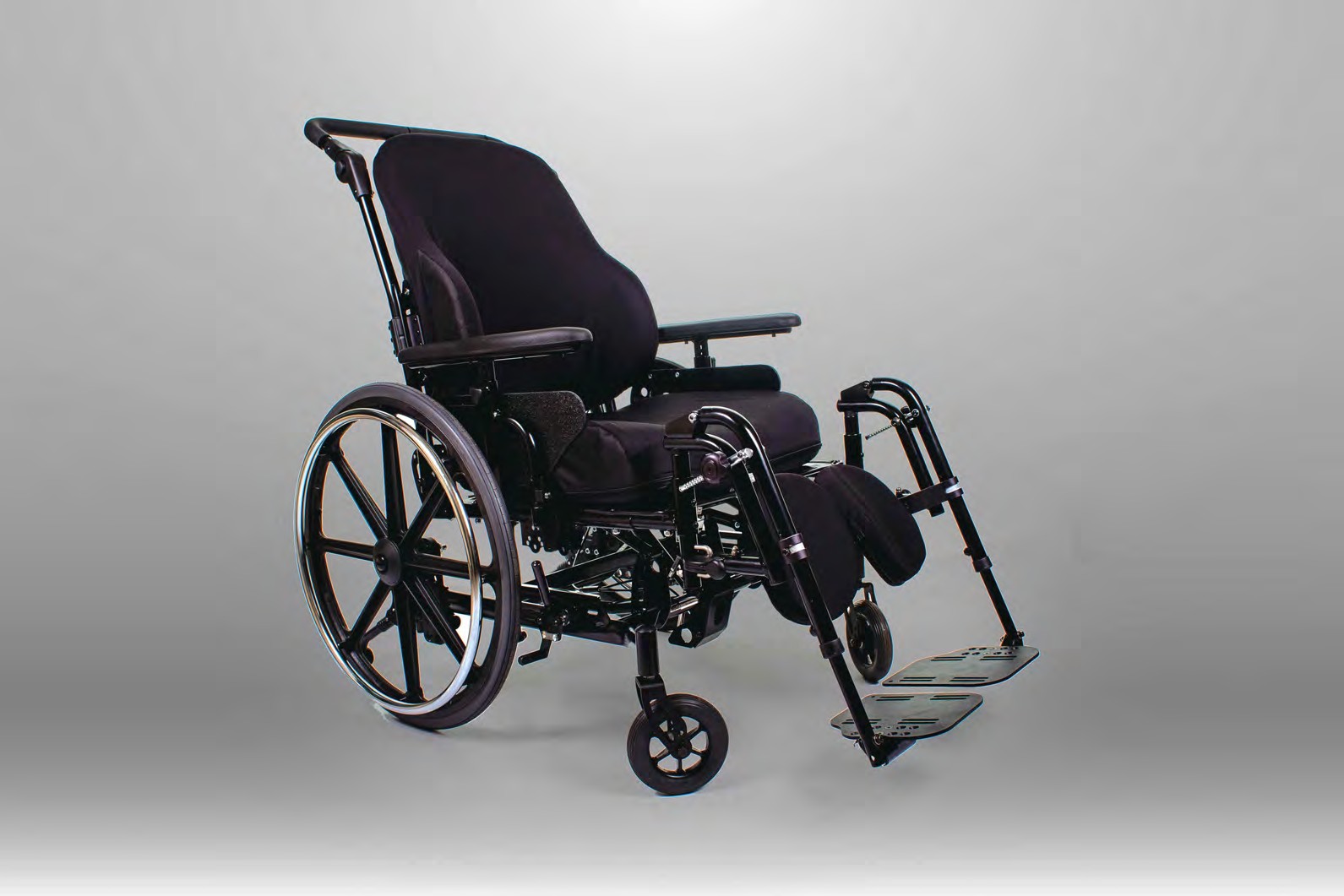

Future Mobility Orion II tilt-in-space wheelchair

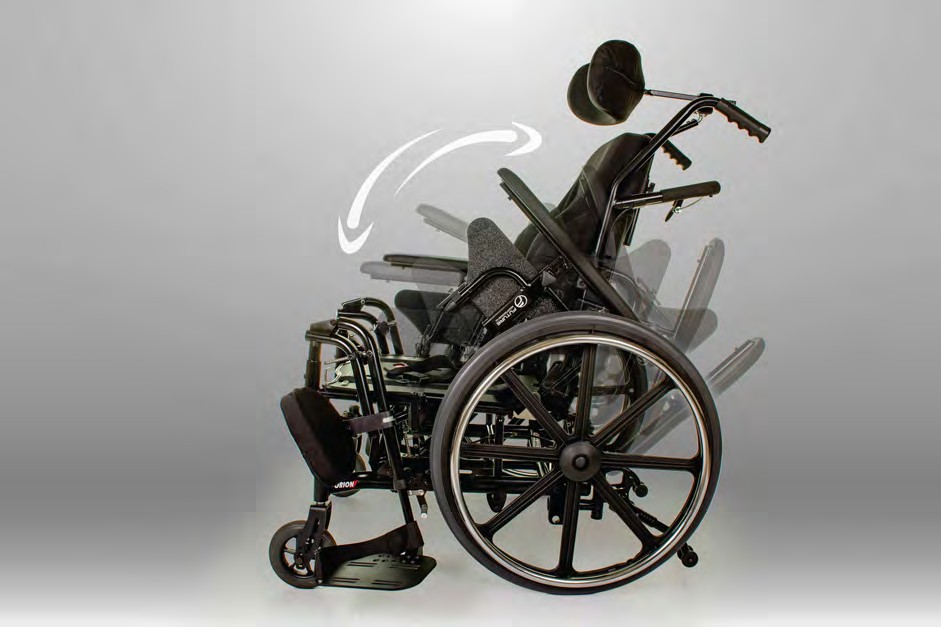

The Orion II is one of the most popular tilt wheelchairs on the market. It was developed for active people who need to redistribute their body weight to reach an optimal, comfortable position. Tilting the whole seat back – while keeping hip and knee angles the same – shifts pressure and makes repositioning easier for the caregiver.

A standard 350 lb weight capacity, a low 13¼″ seat-to-floor height and a seat that sizes from 15″ to 24″ wide make it a versatile chair for home and long-term care. Made in North America by Future Mobility.

Key features

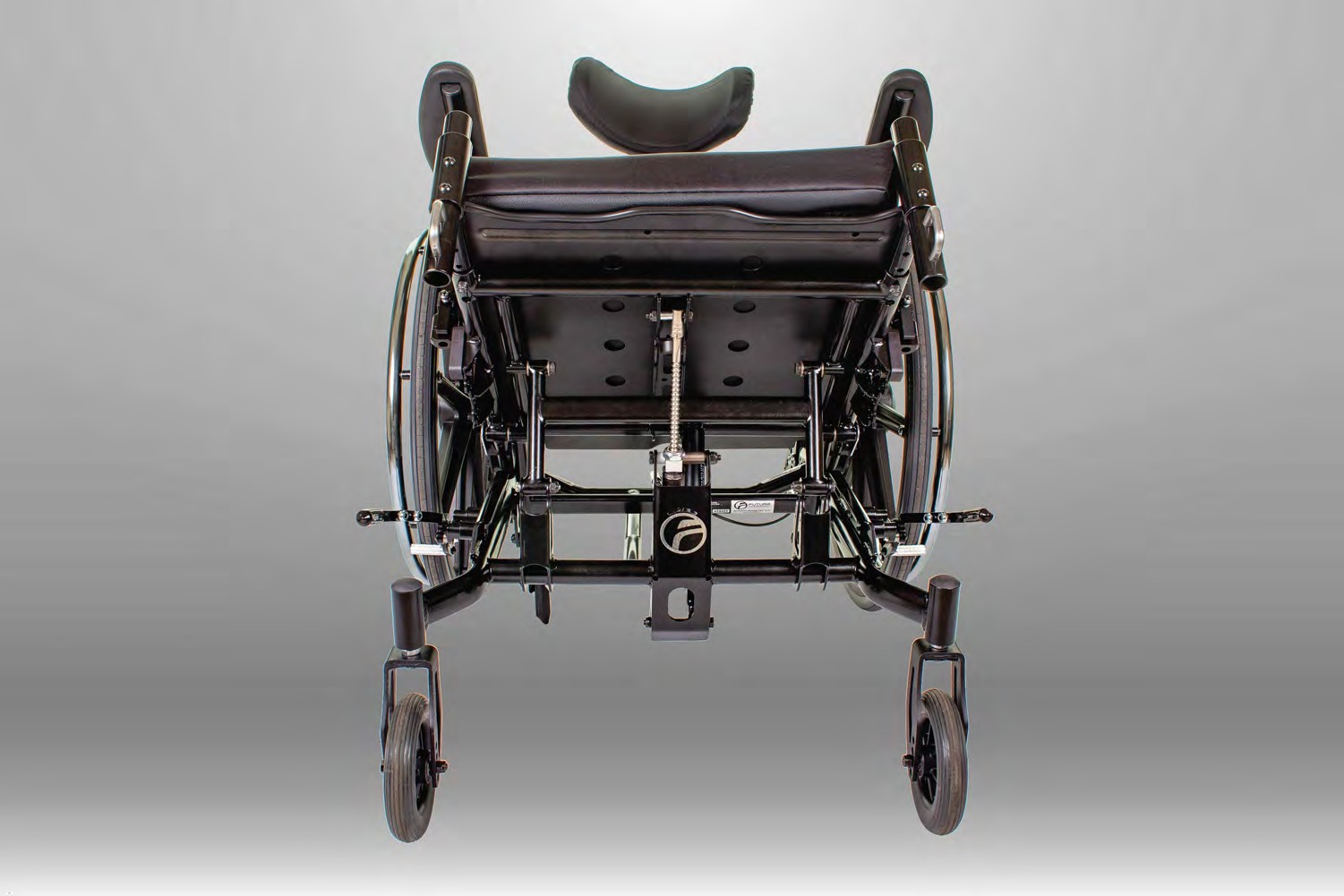

• Posi-Lock tilt – located under the seat, it gives a gentle, slow tilt and locks at different angles
• Low seat-to-floor height – from 13¼″, ideal for foot-propelling and transfers
• 350 lb weight capacity as standard

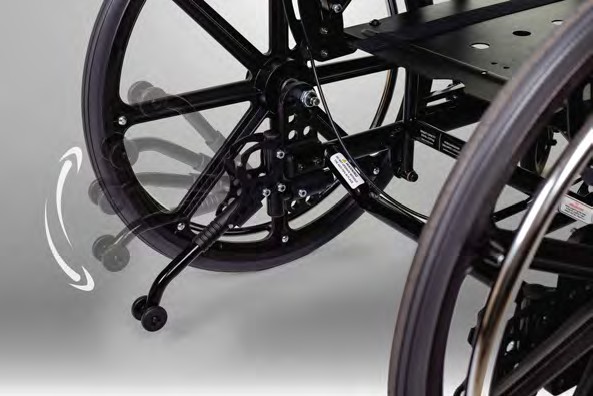

• Anti-tipper fall-prevention system included as standard

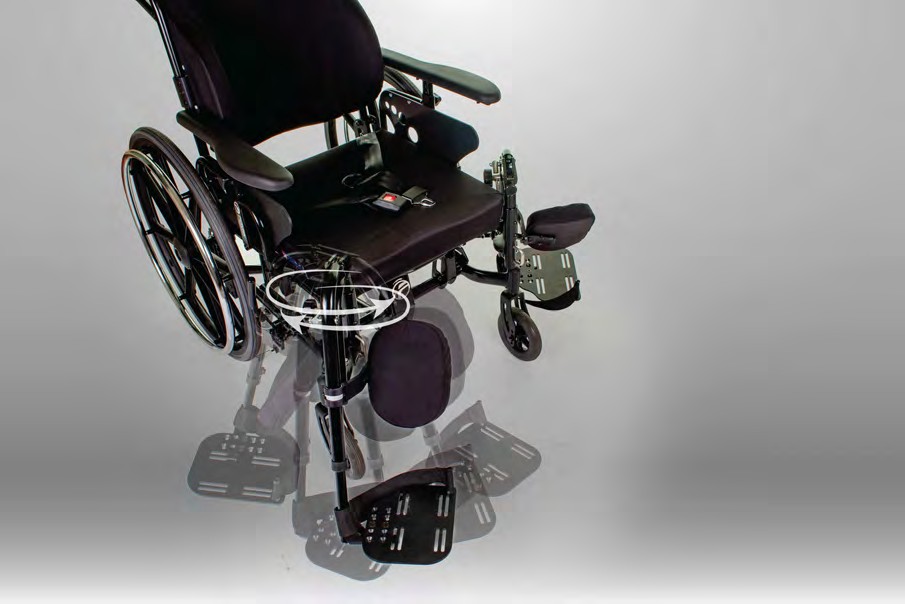

• Swing-away front riggings – swing-out, or dual swing-in and swing-out, for easier transfers and transport
• Armrest choices – flip-up, height-adjustable or fixed styles
• Adjustable back angle – −7°, 0°, 7°, 14° or 21°
• Contoured padded headrest, Orion back and gel-padded armrests
• Removable rear wheels with coated handrims
• Heel loops for foot positioning
• 8 frame colors

Specifications

• Weight capacity: 350 lb (159 kg)
• Product weight: 65 lb (29 kg)
• Seat width: 15″ – 24″
• Seat depth: 15″ – 24″
• Seat-to-floor height: 13¼″ – 20″
• Overall width: seat width + 9½″
• Rear wheels: 12″, 20″, 22″ or 24″ composite with urethane tires
• Front casters: 4″, 5″, 6″, 7″ or 8″ urethane
• Back: Orion back, angle −7°, 0°, 7°, 14°, 21°

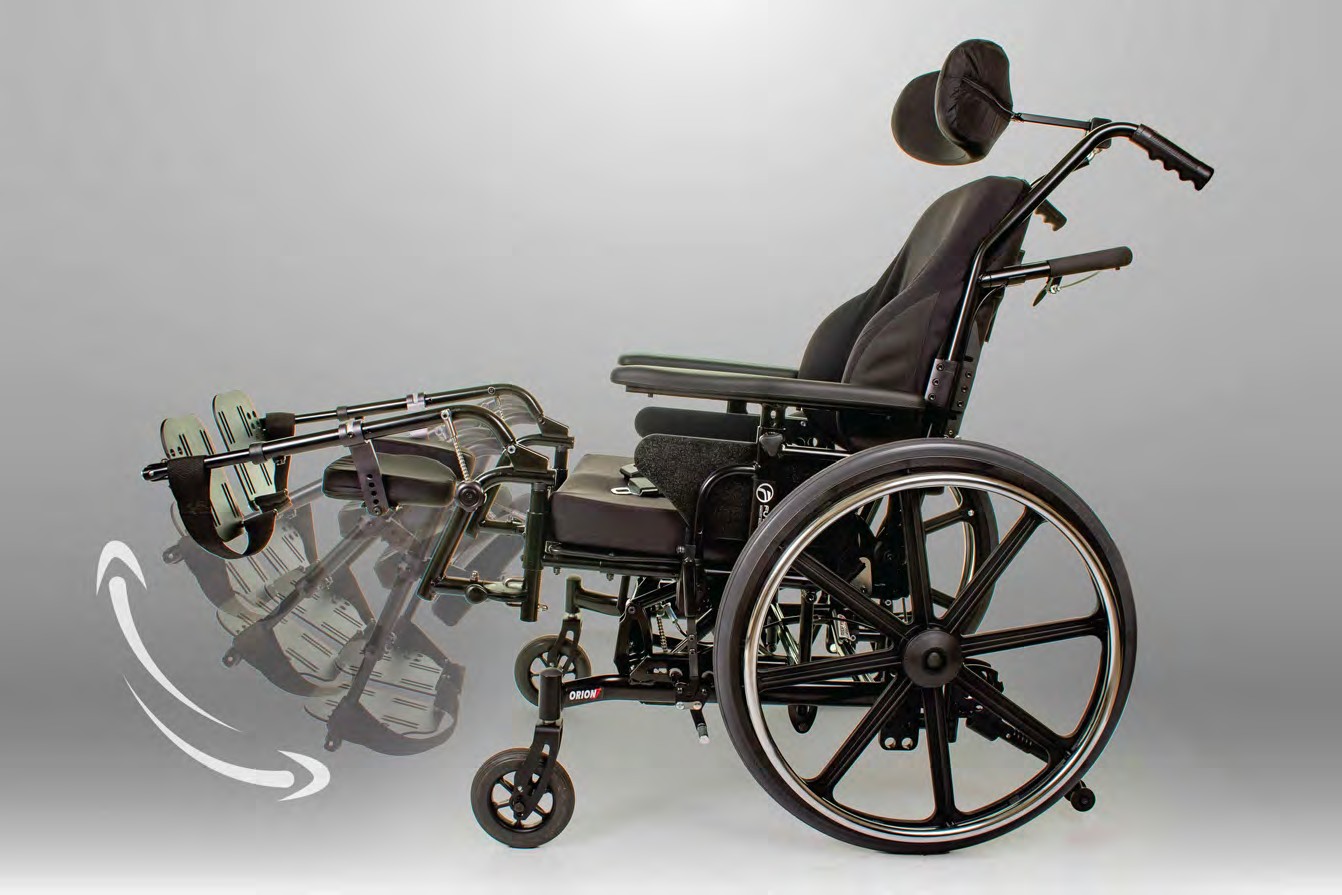

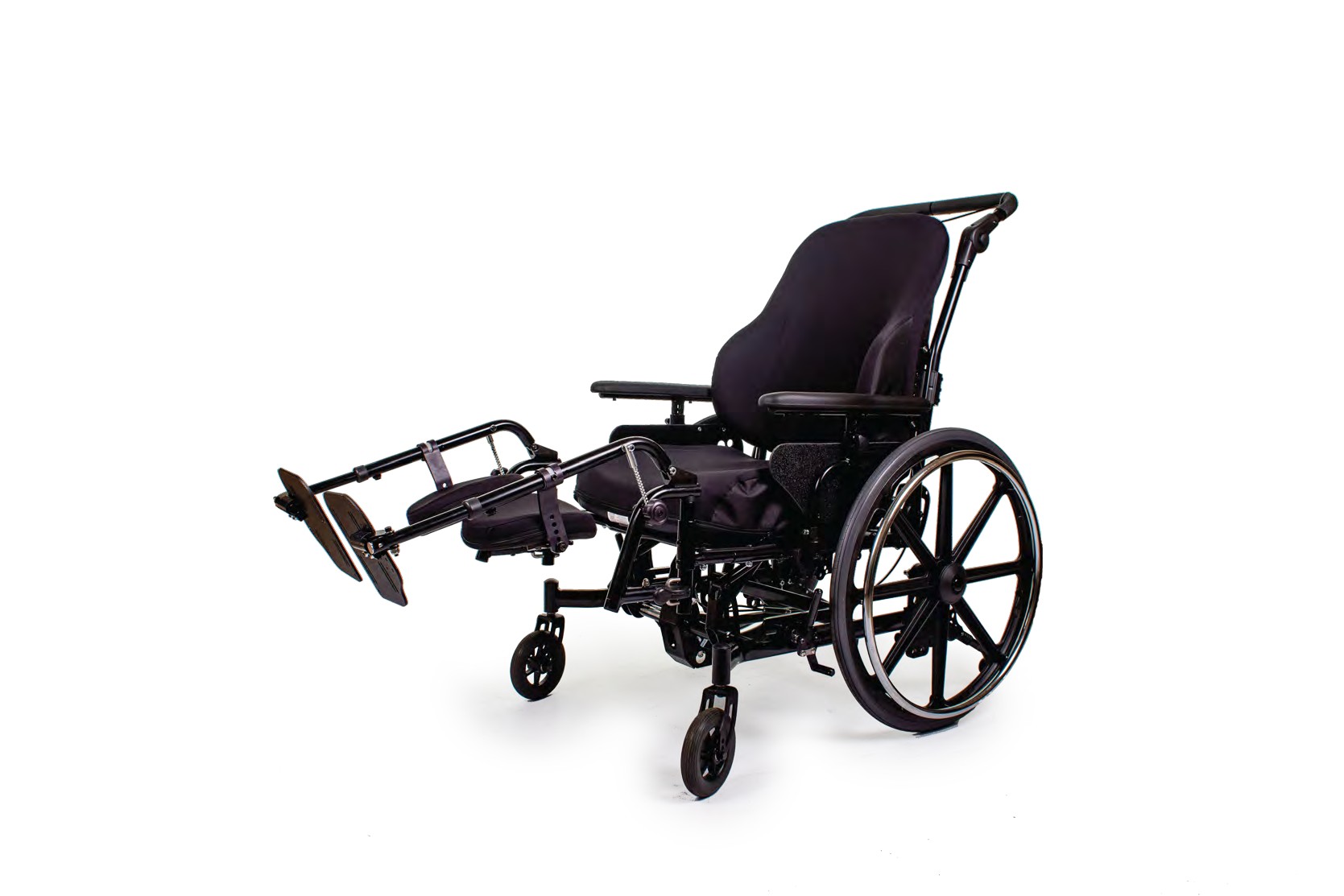

• Front rigging: pin-style swing-away, dual swing-away or dual elevating legrests
• Arm style: adjustable-height T-style, adjustable-height pin-release T-style, or adjustable-height flip-back

Manufacturer warranty

• Frame: lifetime
• Materials and workmanship: 1 year
• Power tilt control box, battery charger, actuator and hand control: 1 year
• Power tilt batteries: 6 months
• Upholstery: 90 days

Warranty applies to normal use by the original purchaser, from the date of purchase. Defective parts are repaired or replaced at Future Mobility’s discretion.

Fitted to the user

Our team can help you choose the right seat size, legrests and options, and work with your therapist if you have one. Call 1-888-959-0072 or contact us before ordering.

Need a higher weight capacity? See the Orion II 500 (up to 500 lb) →

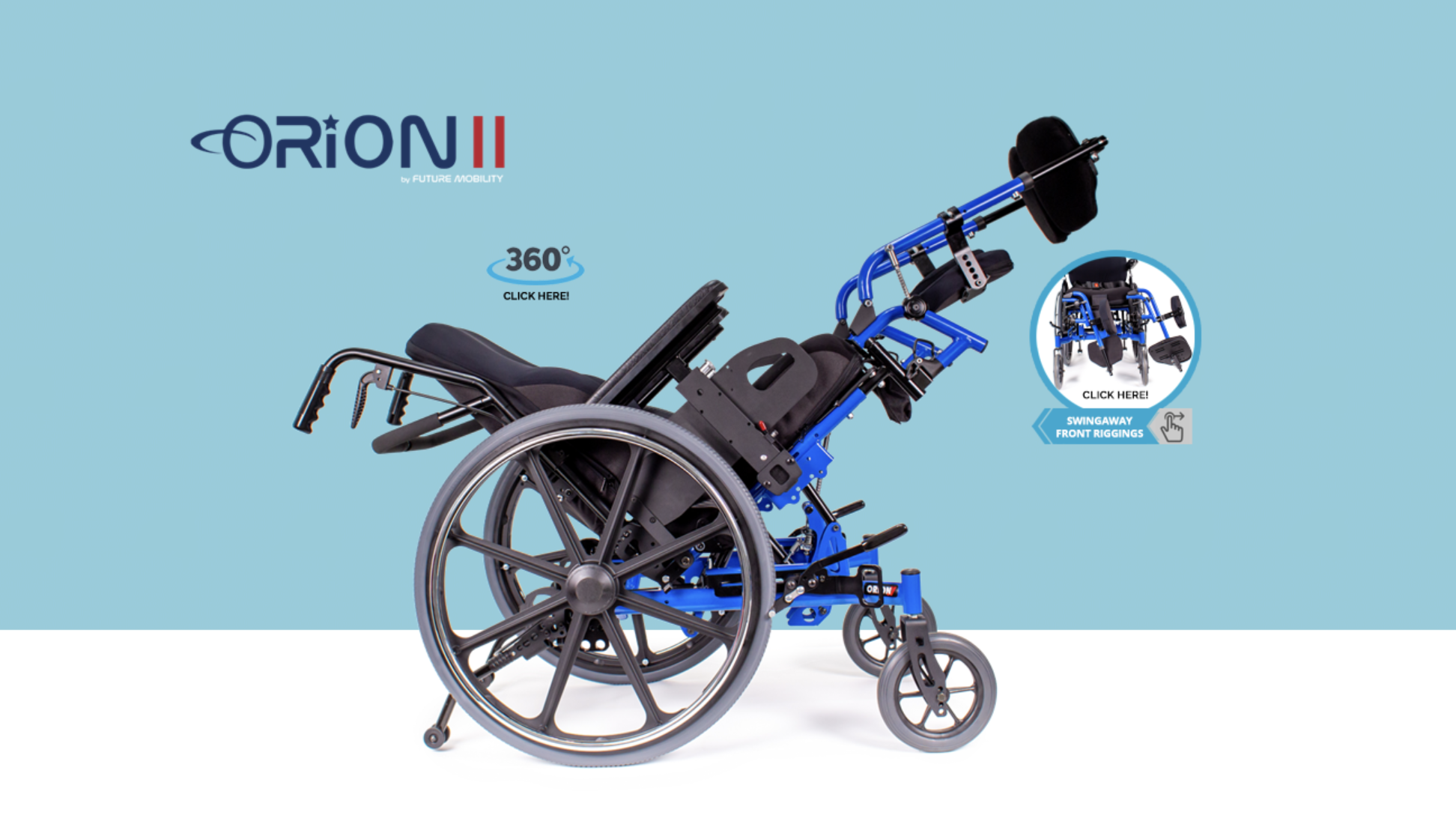

Setup & how-to videos
