Description
Altair Ceiling Lift Features
Exceptional Comfort
When paired with Human Care slings, the Altair provides excellent comfort. Additionally, the quick-release hanger bar is available in two sizes to meet a variety of user needs. With capacities of 150 kg, 220 kg, and 300 kg, it offers a versatile lifting solution.
Smart Technology
Furthermore, the Altair tracks lift usage and stores data for easy access through the Data and Service Application. Information can be viewed, analyzed, or exported as needed.
Easy and Efficient

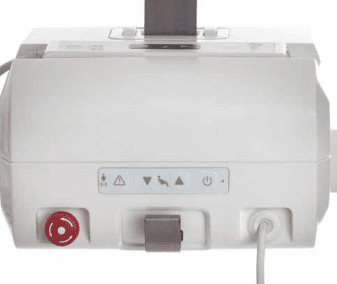

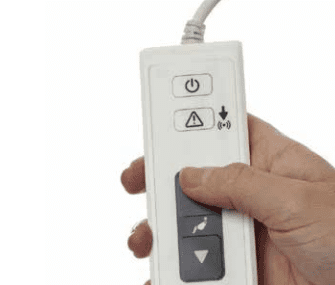

In addition, the Altair features a simple hand control and a backup control panel on the lift. Soft-start and soft-stop functions ensure smooth transfers, while two lifting speeds and a high-capacity battery help support efficient daily use.
Specifications:
| Description | Altair 150 | Altair 220 | Altair 300 |
| Part Number (Lift) | 55200H-NA | 55210H-NA | 55220H-NA |
| Part Number (Hanger Bar)
*Sold Separately |
55751 (45cm/17.7”) 55764(55cm/21.7”) |
55751 (45cm/17.7”) 55764(55cm/21.7”) |
55751 (45cm/17.7”) 55764(55cm/21.7”) |
| Dimensions (W x H x L) | 23,5cm x 14cm x 30cm 9.2” x 5.5” x 11.8” |
||
| Safe Working Load | 150kg/330lb | 220kg/484lb | 300kg/661lb |
| Product Weight (Lift) | 7.4kg / 16.2lb | ||
| Product Weight (Hanger Bar) | 1.3kg/2.8lb (55751) 1.5kg/3.3lb (55764) |
||
| Battery | 2.3Ah, 2x12V | ||
| Battery Charger | Input: 100-240V, AC 50-60 Hz Output: 27.8V, 0.8A DC |
||
| IP Class | Lift: IPX4 Hand Control: IPX7 |
||
| Lifting Distance and Speed | Distance: 212 cm / 83.5” Speed: 1.8m/min – 3 m/min — 70”/min – 118”/min |
||
| Approvals | ROHS-2 approved, Tested and approved according to ISO 10535:2006 ETL Listed |
||
| Emergency Lowering | Electronic and Mechanica | ||
